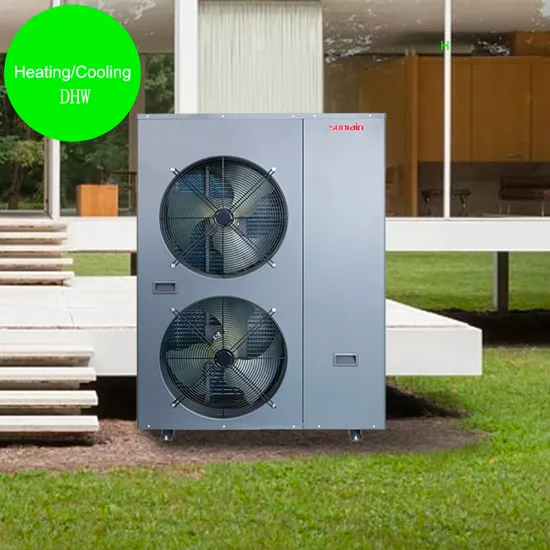

Sunrain R32 Full DC Inverter Heating and Cooling Heat Pump for Home Central Heating Air to Water Heatpump System

Product Description

Product Description
0:0

Product Name	R32 Monoblock Heat Pump	Working Temerature	-25-40ºC
Erp Grade	A++	Compressor	Pansonic
Function	Heating&Cooling&Hot Water	Delivery Time	20-45 days
Capacity	12/15/18/24/31kw	MOQ	1 Pcs

3 In 1 R32 Monoblock Heat Pump1). Sunrain R32 air source heat pump can satisfy your demand for Heating, Cooling & hot water 2). Erp is A+++ energy consumption for the heatpump.
3). Both R32 and R290 refrigerant are available
4). Sunrain monobloc heat pump has passed CE, CB certification, suitable for EU market
5). PVC Titanium heat exchanger with full resistance against corrosion making our water heater more durable.
6). Intelligent LCD display wire controller with touch screen display.
7). Automatic defrosting function included. (With reverse cycle valve inside)Detailed Photos
R32 Air Source Heat Pump Monoblock Heat Pump can provide heating and cooling function for home. And With EVI technology, it can be used in cold area and has a stable running under -25ºC.

Model No.	BLN-012TA1	BLN-015TA1	BLN-015TA3	BLN-018TA2	BLN-018TA3	BLN-024TA2	BLN-031TA2
Power supply(V/Ph/Hz)	220V-240V/1/50(60)Hz		380V/3/50(60)Hz	220V-240V/1/50(60)Hz	380V/3/50(60)Hz
Performance condition at Air 7ºC/6ºC, Inlet/Outlet Water 30ºC in, 35ºC out
Heating Capacity(kW)	12(3.2-12.8)	15(4.1-16.8)	15(4.1-16.8)	18(5.2-20.5)	18(5.2-20.5)	24(5-24.5)	31(6-31.5)
Power Input(kW)	2.6(0.81-2.80)	3.3(1.02-3.81)	3.3(1.02-3.81)	3.81(1.17-4.35)	3.81(1.17-4.35)	5.42(1.5-5.57)	7.38(2.5-7.5)
COP	4.62	4.54	4.54	4.72	4.72	4.42	4.2
Heating Capacity at Air 7ºC, Water 50ºC in, 55ºC out
Heating Capacity(kW)	10(3.1-10.9)	15.1(4.3-16.8)	15.1(4.3-16.8)	15(4.6-18.5)	15(4.6-18.5)	26(5-26.5)	29(6-29.5)
Power Input(kW)	2.82(0.88-3.04)	4.35(1.32-5.02)	4.35(1.32-5.02)	4.08(1.25-4.65)	4.08(1.25-4.65)	8.81(2.2-8.86)	10.3(2.8-10.5)
COP	3.54	3.47	3.47	3.68	3.68	2.95	2.81
Cooling Capacity at Air 35ºC, Water 12ºC in, 7ºC out
Cooling Capacity(kW)	8(2.6-9.1)	10.4(3.6-11.5)	10.4(3.6-11.5)	14(4.2-16.8)	14(4.2-16.8)	18(5-18.5)	22.5(6-23)
Power Input(kW)	2.25(0.69-2.65)	3.2(0.98-3.65)	3.2(0.98-3.65)	3.87(1.21-4.45)	3.87(1.21-4.45)	6.1(2.1-6.35)	8.65(2.6-9.02)
EER	3.56	3.25	3.25	3.62	3.62	2.95	2.6
Max Power Input(kW)	5.3	7.5	8	6.8	8	11.5	12.8
Max Current(A)	22	34	16	32	16	20	26
Refrigerant	R32	R32	R32	R32	R32	R32	R32
Net Weight(kg)	75	130	130	147	147	160	200
Dimensions(L*W*H)(mm)	1005*375*800	1025*380*1320	1025*380*1320	1077*377*1460	1077*377*1460	1127*427*1560	1127*427*1560
Package Dimensions(L*W*H)(mm)	1050*470*920	1045*420*1440	1045*420*1440	1150*460*1580	1150*460*1580	1200*500*1680	1200*500*1680
Compressor	GMCC	GMCC	GMCC	Panosonic	Panosonic	Panosonic	Panosonic
Heat exchanger type	Plate heat exchanger	Plate heat exchanger	Plate heat exchanger	Plate heat exchanger	Plate heat exchanger	Plate heat exchanger	Plate heat exchanger

Packaging & Shipping
Sunrain can customize packing as per customer's request. We have different types of packing for choice.
Company Profile
Our Services & Strength Sunrain group (stock code 603366) as China biggest supplier of solar water heater, solar thermal collector and air source heat pump is specialized in researching, manufacturing and marketing of renewable energy products. With a full range of heat pumps and heat pump components, Sunrain has built domestic heat pump production line, commercial heat pump production line, water tank production line, controller production line, metal cabinet production line and other industrial
production lines. The production capacity and automation degree is in the leading position of heat pump industry.
More than 300,000 square meters work shop area, 6production lines for different series heat pump, more than 3000 skilled worker, strong and professional R&D team, advanced lab and test facilities to ensure good quality heat pump, good delivery time, and professional service.
Exhibitions
Our Service
a. 2 years warranty for the whole heat pump
b. Free spare parts provided
c. OEM ODM project solution service available
