J6 700-800 Theory Output Wide Mouth Manual Blow Molding Machine

J6 700-800 Theory Output Wide Mouth Manual Blow Molding Machine

US$28,000.00-38,000.00 1 Sets (MOQ)

Basic Info.

Model NO.
J6
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Product Name
Wide Mouth Blow Molding Machine
Keywords
Bottle Blowing Machine
Model
J6
Cavity
1
Theory Output
700-800
Max. Volume
6L
Bottle Maximum Height
400mm
Light Tube Quantity
32PCS
Light Tube Power
1kw
Maximum Heating Power
32kw
Work Pressure
7-9kg/Cm2
Low-Pressure Gas Consumption
1200L/Min
Temperature Range
10 Celsius
Forzen Water Flow
30L/Min
MOQ
Low MOQ
Transport Package
Standard Packaging or Customized
Specification
Standard specifications or customized
Trademark
ECENG
Origin
Jiangsu, China
HS Code
8477301000
Production Capacity
20 Sets/Mouth

Product Description


Product Description

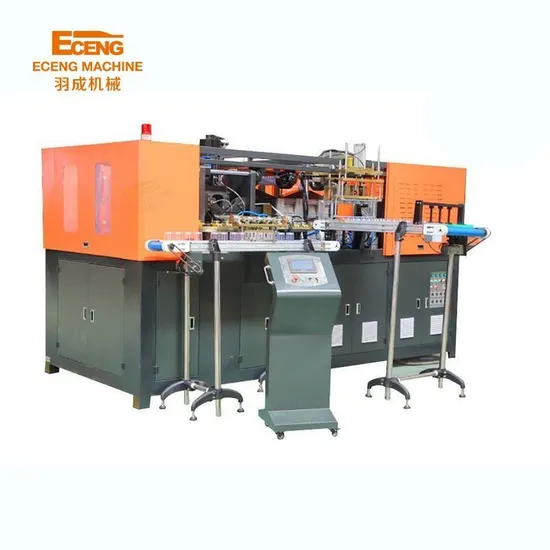

High-Speed Full-Servo Wide-Mouth Blow Molding Machine
The J series is a specialized equipment designed for wide-mouth PET bottles. This equipment has the characteristics of a high degree of automation, wide versatility, and simple operation. It is particularly suitable for the production and processing of large-diameter bottles with a diameter of 50-180. The J series blow molding machine has precise positioning and adopts an advanced microcomputer PLC control system. It can be more stable and suitable for the preform loading and automatic bottle unloading of wide-mouth bottles. One person can control two to three devices. High output can be equipped with full electric stretching and clamping.
Product Parameters
SPECIFICATION
Item J6L1
Bottle type specification Cavity 1
Theory output 700-800
Max.volume 6L
Bottle mouth maximum overall DIdiameter 150mm
Bottle biggest diameter 180mm
Bottle maximum height 400mm
Power specifications Light tube quantity 32pcs
Light tube power 1KW
Maximum heating power 32KW
All electric machine installation 35KW
Actual consumption 24.5KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1200L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 2000-2500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10ÂșC
Consumption 4000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.4x1.5x1.7
Weight of the machine 2ton

Detailed Photos
ADVANTAGE 1
After many technical upgrades, it has become a classic product of Eceng Machinery.
ADVANTAGE 2
PLC control system, automatic feeding of conveyor belt, advanced automatic process flow, one-button fool-style start-up.
ADVANTAGE 3
There is a safety locking device in each mechanical action process to protect the safety of the operator.
ADVANTAGE 4
The cylinder replaces the hydraulic cylinder, with less pollution and low noise; equipped with high pressure and double crank connecting rod-clamping, providing high clamping force.
ADVANTAGE 5
Low-temperature cooling system protection and, a low scrap rate, it is an ideal model for the economical production of wide-mouth bottle equipment.

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory, near Shanghai & Ningbo port, is located in Zhangjiagang, Jiangsu.

Q3: How about quality control in your factory?
A3: " Quality is the key point, do what customers need"
Eceng Machinery Factory focuses on quality, and quality control from beginning to end. Every piece of goods is tested strictly before packing and delivery.

Q4: How about guarantee?
A4: One-year guarantee.

Q5: Do you provide bottle blow mold and air compressor?
A5: Yes, we provide a complete system and you will not need to find a suitable air compressor chiller...etc.

Q6: What is the language of the PLC and touch panel?
A6: Don't worry, we will translate the language into English, Spanish, or any other language, to make sure you will have an easy operation.
