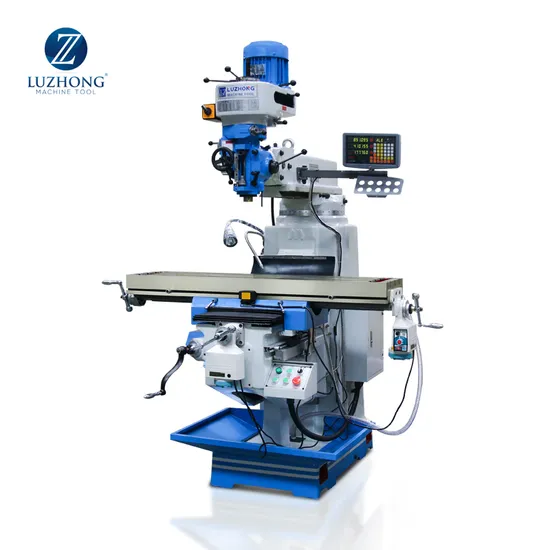

Universal Metal 4H 5H Vertical Turret Milling Machine for sale

Product Description

Universal Metal 4H 5H Vertical Turret Milling Machine for sale
Product Description
The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries. Product Parameters
Product main technical parameters:

Specifications			Units	4H	5H
Table size			mm	1270x254(10"x50")	1370x305(54" x 12")
T- slot number and size			mm	3x16	3x16
Working table stroke		X	mm	780	810
		Y		400	420
		Z		500	500
Telescopic arm stroke			mm	470	500
Spindle nose to working table distance			mm	0-405	0-350
Taper of spindle hole				Standard: R8 Optional: ISO30/ISO40	Standard:ISO40
Spindle speed			r/min	Standard: 16(shift grade)50HZ:65-4500 60HZ:80-5440	Standard: 16(shift grade)50HZ:65-4500 60HZ:80-5440
				Optional:(variable)65-4000	Optional: Variable 65-3750
Spindle travel			mm	127	127
Spindle feed rate			mm/r	Three steps: 0.04(0.0015")/0.08(0.003")/0.15(0.006")	Three steps: 0.04(0.0015")/0.08(0.003")/0.15(0.006")
Spindle motor power			KW/HP	2.25/5HP	3.75/5
Head rotation (left - right )			°	90°	90°
Head rotation (front - rear)			°	45°	45°
Packaging size(Lx W x H)	Single package		mm	1516x1550x2080	1566x1650x2080
	Two sets of packaging			1650x1790x2170	1720x1800x2175
	Three sets of packaging			1650x2285x2235
Gross Weight			Kg	1650	1700

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
