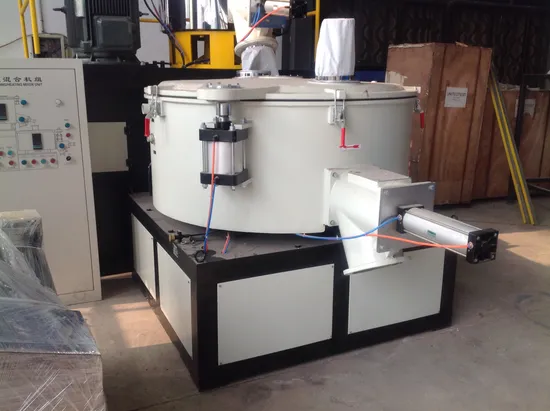

High Speed Mixer for PP PE Mixing and Coloring

Product Description

high speed mixer for pp pe mixing and coloring
High speed mixer can be used for mixing of powder ,coloring ,drying ,etc .It widely used in medicine ,chemical ,food and other industries.
It has simple structure and easy to clean .
It mian used for PVC's mixing and drying ,for PE and PP'S coloring and drying ,etc.
Main parts and material
Pot body adopt δ10mm SUS304 stainless steel which has very good smooth and rigid surface with features of wearable, corrosion resisting, heat resisting, no-stick with raw material
Hot mixer cover material adopt ZL102 casting aluminum with polished surface
Hot and cooling mixer open adopt cylinder pneumatic drive; the main shaft of hot and cold mixer adopt NSK brand which has features of reliable stable working performance.
Hot and cooling sealing adopt silicon rubber sealing with reliable sealing effect and not deformation even at high temperature.
Stirring paddle past dynamic balance testing which lower noise and improve lifespan
Main advantage hybrid evenly,high speed (only 8-12min once ),Easy to operate and clean ,durable . Advanced design,safe and reliable. Small size(volumetric), light weight and high output(250-1300kg/hr). Low energy consumption,low noise.
Technique parameter

Model	Motor Power(kw)	Capacity(kg/h)
SRL-Z100/200	14/22(22)/7.5	180
SRL-Z200/500	30/42(45)/11	350
SRL-Z300/600	40/55(55)/11	480
SRL-Z500/1000	47/67(75)/15	800
SRL-Z800/1600	60/90(90)/22	1200
SRL-W500/1600	47/67(75)/15	800
SRL-W800/2500	83/110(110)/22	1500
