PVC PP Corrugated Sheet Extrusion Machine

Product Description

Corrugated sheet machine pvc corrugated sheet extrusion machine
PART 1 INTRODCUTION ANDAPPLICATION:

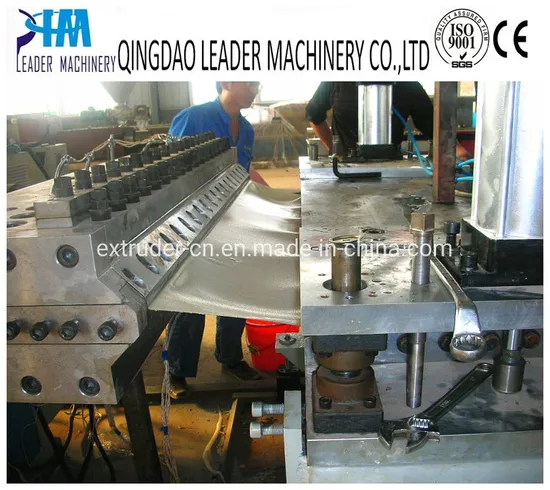

Pvc/pp corrugated roofing sheet extrusion line designed and produced by Leader Machinery can continuously produce various-shape roofing sheets with corresponding shaping moulds. This complete plant includes: high speed mixer, conical twin screw extruder, T-type die head, corrugation forming moulds, haul off machine, cutting device and stacker etc.
This roofing sheet has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.
PART 2 FEATURES OF THIS LINE:
1. Extruder: single-screw extruder PP / PE / PC, conical twin-screw extruder PVC.
2. T die head: The hanger-type flow structure, a suitable compression ratio to ensure the stability of material flow evenly.
3. Calibrating molds: rational design, the unique design of the cooling flow to ensure the accuracy of products,
4. Hauling machine: roller traction, using high quality NBR rubber roller, pneumatic adjustment, and frequency speed adjustment.
5. Cutting Machine: Knife cutting, fast, good accuracy.
PART 3 MAIN TECHINICAL DATA:

Sheet size	Width( mm)	900	1130	1200	1300
	Thickness(mm)	0.8-3	0.8-3	0.8-3	0.8-3
T-type Die head	Die head width	1050mm	1280	1350	1450
Shape waves	Round waves or trapezoidal waves
Max extruder	SJ-65/132 or 80/156		SJ-80/156
Max output	250-300kg/h		350-400kg/h
Drive motor	37kw/55kw		55kw/75kw

PART 4 DELIVERY, PAYMENT AND OTHERS:
1. delivery time: 60 days after receiving the deposit
2. payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3. Packing details: wooden pallets and cases with stretching films
4. Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
5. Service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc.
