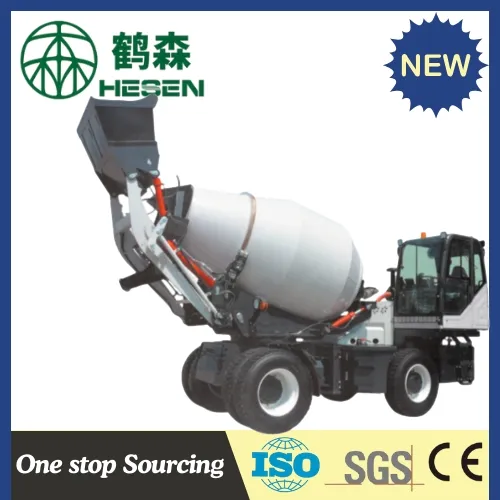

3.5m³ Self-Loading Mixer, CE Certified, Optimized for High-Efficiency Concrete Mixing

Product Description

Product Parameters

	HL-50 (6 Tyre)	HL-40 (6 Tyre)	HL-35 (6 Tyre)	HL-26 (4 Tyre)	HL-20 (4 Tyre)	HL-15 (4 Tyre)
Mixing and Unloading
Valid output(m³)	5.0	4.0	3.5	2.6	2.0	1.5
Geometerical Drum Volume (m³)	8.28	6.45	5.5	3.95	3.45	1.93
Drum Rotation Speed (rpm)	20	20	20	20	20	20
General Parameters
Overall Dimension (L*W*H) (mm)	8778*3050*3640	7850*2872*3375	7600*2872*3374	7040*2733*3091	7040*2695*3000	6430*2350*2920
Wheel Base (mm)	2860	2600	2600	2570	2570	2440
Weight (KG)	10500	9000	8300	6500	6200	4500
Drive	4*4	4*4	4*4	4*4	4*4	4*4
Maximum Speed (Km/h)	35	35	35	35	35	35
Maximum Gradeability (°)	40	40	40	40	40	40
Minimum Ground Clearance (mm)	300	300	290	280	270	270
Engine
Model	Weichai 6105 Turbocharge OR Optional	Yuchai 4108 Turbocharge OR Optional	Yuchai 4105 Turbocharge OR Optional	Yuchai 4105 Turbocharge OR Optional	Yuchai 4102 Turbocharge OR Optional	Yunnei 490 Turbocharge or Optional
Rated Power (KW)	92	91	85	77.3	76	58
Gearbox
Model	JBJ-428 Power Shift Gearbox	JBJ-320 Power Shift Gearbox	JBJ-320 Power Shift Gearbox	JBJ-278 Power Shift Gearbox	JBJ-278 Power Shift Gearbox	JBJ-278 Power Shift Gearbox
Gearshift (Forward/Reverse)	4+4	4+4	4+4	4+4	4+4	4+4
Maintenance Refill Quantity
Fuel Tank (L)	150	120	120	120	120	120
Hydraulic oil Tank (L)	150	120	120	120	120	120
Engine Oil Tank (L)	22	13	13	13	13	12-13
Water Supply System
Water Tank (L)	900	750	750	750	500	500
Ways of Water Supply	Time Relay	Time Relay	Time Relay	Time Relay	Time Relay	Time Relay
Hydraulic System
Reducder	5F-300B	5F-300B	5F-300B	3F-130K	3F-130K	1.5F-100K
Motor	A2FM63	A2FM63	A2FM63	BMS-200	BMS-200	BMS-160

Detailed Photos
Our Advantages
The self-loading concrete mixer offers independence by handling charging, mixing, transporting, and discharging on its own. It provides multi-functionality, replacing multiple machines such as wheel loaders, cement mixers, and transporters, with 270-degree rotary discharge for diverse environments. It delivers high cost performance, reducing equipment and labor costs while ensuring high-efficiency output, saving time and resources.
Main features include:
Automatic feeding and mixing system. Simple, convenient operation. The cabin and loading/discharge hopper are aligned on the same horizontal plane, making operation easier. A compact turning radius for maneuverability in tight spaces. Oscillating rear axle for off-road mobility. Easy ground-level maintenance. Detailed Dimensions
Certifications

Packaging & Shipping
Our standard shipping method involves disassembling the products entirely or partially to fit them into 40HC containers. During transportation, we securely fix the products within the container to prevent any movement. For the V50 and V40 models, we also offer the option to transport the complete products using bulk carriers. To ensure the safety of the products during transit, we apply anticorrosive wax to the SLM components.
FAQ

Q1:May I know how soon I can get the machine after I transfer the deposit? A: Usually, if the quantity is less than 20 units, we can finish the production in 15-20 days. We will try our best to offer the machines to you as soon as possible.

Q2:How long the product warranty period?
A: The product warranty period is 12 months.

Q3:How long have you engaged in this industry?
A:Our trading company has been engaged in this industry for over a decade. With our extensive experience, we offer several advantages over direct factory sourcing: Wide Product Range: We collaborate with multiple manufacturers, allowing us to provide a diverse selection of products to meet various customer needs.
Quality Assurance: We conduct thorough inspections and quality checks on products from different factories, ensuring that only the highest quality items reach our customers.
Streamlined Communication: We handle all negotiations and communications with manufacturers, saving our clients time and effort.
Flexible Solutions: Our broad network enables us to offer customized solutions and configurations that might not be available directly from a single factory.
Efficient Logistics: We have established logistics networks that ensure timely and cost-effective delivery of goods to any destination.
