Granite Marble Stone Edge Full Auto Bridge Saw Cutting Machine

Product Description

China High Quality Good Price 5 Axis Bridge Cutting Saw

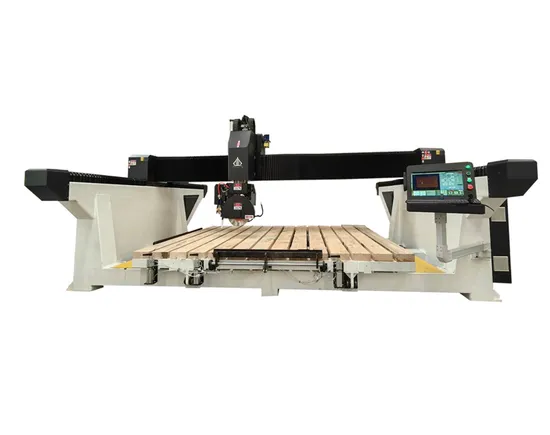

Machine Pictures

Machine Advantages
A full-featured five-axis processing equipment. The machine head can rotate 360 degrees. Longitudinal, cross-cut, round cut, diamond cut, 45 degree cut, malleolus edge, profiling, lines, edging, chamfering, digging and other multi-function integrated intelligent operating system is easy to learn, high-quality motor, high precision and fast speed. Horizontal, vertical, arc, circular, any angle and shape cutting head can be freely moved and rotated. In addition to cutting shapes, it can also cut materials for large plates, 45-degree chamfering. It is suitable for stone processing machinery required for quartz stone, artificial stone, granite, marble and various large, medium and small stone decoration projects. Save board, save time, worry and effort!
The bridge saw machine is more cost-effective than the 5-axis cutting machine. This is a new type of machine developed by Dafon machinery. It mainly processes some conventional shapes such as washbasin countertops, circles, and rectangles. The configuration can be rotated 45-90 degrees Cutting head and engraving head, compared with the conventional 4-axis bridge saw cutter, have more complete functions, and the processing table is faster, more accurate, and more efficient.
This adopts PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device. There are Chinese & English double operation language, using inverter to control left right feeding , It adjusts the speed according to stone material, using hydraulic lifting system which equipped through 4 guide post, also this machine provides the unique side beam protection device, main spare parts adopted imported high-quality world famous brand materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy operation. It is particularly suitable for high value granite and big size marble.
Machine Functions

* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Machine Mainly parts

<Special Control System>
More intelligent and easy operate,it can control the spindle and saw blade very well,Use advanced PLC control system and human-machine interface with touch screen to offer friendly and inteligent control.
<Saw Blade>
It can cut Marble stone Granite fast speed and more smooth. Almost no need polishing after cutting
11KW Stone cutting Spindle
It can cutting engraving drilling on marble
All Axis have the dust protect device
It can protect the guide rail and rack from dust or crumbs. Prolong the using life of the machine.
Auto Lubrication System
Auto lubrication can be oil for rack and ball screw, then prolong machine using time. And it makes the regular maintenance very easy and reduce waste.
About us
Samet Intelligent Manufacturing Co., Ltd. was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc. With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Ours Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
FAQ
Q:How to place order to your company?
A: 1.Inquiry-Professional quotation
2.Confirm the price,lead time, logo, payment term etc.
3.Xianda sales send the Proforma Invoice with seal.
4.Customers make the payment as a deposit and send us Bank receipt
5.Sales confirm the receipt of down payment After approval, we will arrange the production & inform the estimated time
Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years
Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service
Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines ,big arc shaped slabs and special stone shapes.
