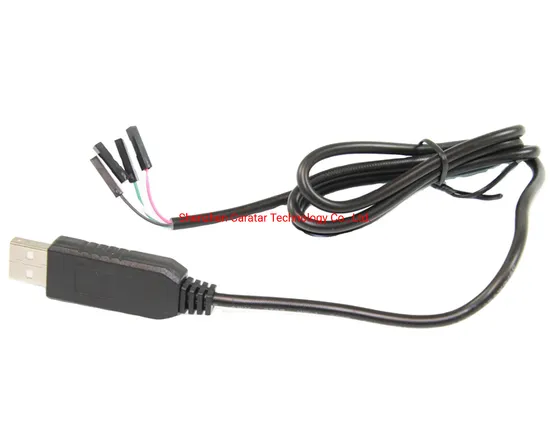

Ftdi FT232rl Download Line USB 2.0 to Serial Port Module 3pin DuPont Wire 2.54mm Pitch RS485 Serial Cable

Product Description

Product Description Wholesale FTDI FT232RL Download Line USB 2.0 to Serial Port Module 3Pin dupont wire 2.54mm pitch RS485 Serial Cable Product: USB serial converter cable
Connector: USB 2.0 A Male / 3Pin dupont
Chipset: Original UK FTDI/FT232RL chip Length: standard 1.8m or customized
Application: router, switch, firewall, CNC Program, bar coder reader, scanner, etc Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
Data transfer rate up to 230.4 Kb/s
Output Signals:Green-DATA A(+),White-DATA B(-),Black-GND
1.8m,OD=3.8mm,28*3C CE RoHS/UL compliance
FT232RL chip, supporting FTDI VCP, D2XX, D3XX usb serial driver
Supporting Operating System: Win 7/8/10, 2000, Linux, Mac OS,Android,Vista.
Drivers are available which allow USB devices to work with the following operating systems:
* For Windows 8 x32
* For Windows 8 x64
* For Windows Server 2008 R2 x64
* For Windows 7 x32
* For Windows 7 x64
* For Windows Server 2008
* For Windows Server 2008 x64
* For Windows Vista x32
* For Windows Vista x64
* For Windows Server 2003 x32
* For Windows Server 2003 x64
* For Windows XP x32
* For Windows XP x64
* For Windows ME
* For Windows 98
* For Linux
* For Mac OS X
* For Mac OS 9
* For Mac OS 8
* For Windows CE. NET (Version 4.2 and greater)
* For Android
* For windows 10 Driver Downloading: https://www.ftdichip. com/Drivers/VCP.htm
Installation Guideline: http://www.ftdichip. com/Support/Documents/InstallGuides.htm
ftdi usb rs485 cable, compatible usb rs485 we 1800 bt
half duplex, non isolated
Standard 10k pull up & down resistor, 120R terminal resistor
usb2.0 standard, full speed 12M support
On-board signals: Data+, Data-, VCC5V, GND
ft232rl chip for USB UART signals, and SP485LEEN for UART to RS485 signals shift
6 core, 26AWG, bare copper, PVC jacket, OD5.0mm
24AWG wire not suitable for RJ45/rj12 etc
1.8mtr in length
Compatible with ftdi usb-rs485-we-bt signals

Detailed Images
Introduction
The USB 2.0 to RS485 Cable provides a simple and easy to connect between the USB and RS485 ports interface. Ideally for PC, thin client or servers to provide instant RS485 ports expansion via USB ports.

USB to RS485 industrial intelligent converter,no power supply needed,plug-and-play
USB485 is a kind of USB to RS485 industrial intelligent converter. It is the best solution for the communication between USB and RS485. Compared with RS232 to RS485 converter, USB to RS485 converter has many advantages.


Product Features
RS-485 interfaces supported.
RS-485 interface DB PIN connector .
Maximum RS-485 cable length: 1200m
Transmission rate 300bps to 1Mbps.
Maximum number of devides in the RS485
network:Half Duplex to 32 devices
Remote wake-up and power supply management supported.
+/-15KV ESD Protect.
Direct USB power without external power supply.
Working environment: -40 deg.C to 85 deg.C, relative humidity 5% to 95%.
Windows95/98/2000/XP and NT-IMAG supported.
Introducing the Ftdi FT232rl Download Line USB 2.0 to Serial Port Module 3pin DuPont Wire 2.54mm Pitch RS485 Serial Cable, a cutting-edge product designed to revolutionize your cross-border e-commerce experience. With a perfect blend of industry expertise and marketing know-how, this product description aims to provide you with specific details about our exceptional offering.
The Ftdi FT232rl Download Line USB 2.0 to Serial Port Module 3pin DuPont Wire 2.54mm Pitch RS485 Serial Cable is a versatile and high-performance USB to RJ9 adapter that seamlessly connects your devices. Whether you need to connect your computer to a console or establish a reliable communication channel, this cable is your ultimate solution.
Crafted with utmost precision and attention to detail, this cable boasts the renowned Ftdi 232 485 chipset, ensuring unparalleled performance and reliability. With its USB 2.0 interface, you can enjoy lightning-fast data transfer speeds, allowing you to effortlessly download and upload files.
The 3-pin DuPont wire with a 2.54mm pitch guarantees a secure and stable connection, eliminating any worries about signal loss or interruptions. This cable is designed to withstand the test of time, thanks to its durable construction and high-quality materials.
Our Ftdi FT232rl Download Line USB 2.0 to Serial Port Module 3pin DuPont Wire 2.54mm Pitch RS485 Serial Cable is not only a technological marvel but also a versatile tool. It can be used in various industries, including telecommunications, industrial automation, and computer networking. Its compatibility with multiple devices and operating systems makes it a must-have for professionals and enthusiasts alike.
In conclusion, our Ftdi FT232rl Download Line USB 2.0 to Serial Port Module 3pin DuPont Wire 2.54mm Pitch RS485 Serial Cable is the epitome of excellence in cross-border e-commerce. With its exceptional features, unrivaled performance, and universal compatibility, this cable is a game-changer. Don't miss out on the opportunity to enhance your connectivity and streamline your operations. Order now and experience the future of communication.
