Kowloon Machinery Granulating Machine Make Rubber Crumb Rubber Granulator of Tire

Product Description

Kowloon Machinery Granulating Machine Make Rubber Crumb Rubber Granulator of Tire
Product Description

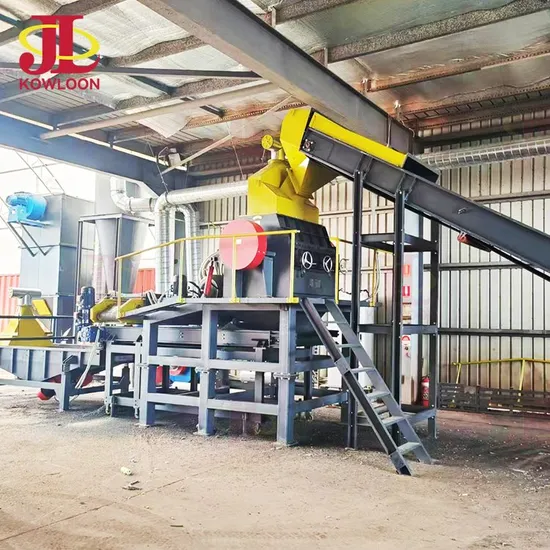

JLSP granulator machine produced by Zhengzhou kowloon machinery can not only produce tire crumbs and rubber crumbs, but also plastic granules. In order to better meet the needs of customers, different types of knives and screens need to be replaced inside the machine according to different raw materials, and the output size can also be customized according to user needs.

Model	JLSP800	JLSP1000	JLSP1200	JLSP1500
Main motor	55kw	75kw	90kw	110kw
Rotor diameter	600mm	600mm	700mm	700mm
blade	Made of H13, solid blade
Hydraulic station	2.2kw	2.2kw	3kw	3kw
Self-discharge belt conveyor	2.2kw	2.2kw	3kw	3kw
Screen hole size	Dia.3-7mm
Dimensions	3.35*1.65*2.95m	3.25*1.85*2.95m	2.7*2.05*3.45m	2.7*2.4*3.45m

Details Show
Granulator for Rubber Plastic Recycling

Plastic grinders are essential equipment for the plastic recycling industry. Plastic shredders can only shred plastic into large sizes. If you want to get a size of 10mm or smaller, you must perform secondary crushing, and then you need a plastic granulator machine. Of course, the size required can be adjusted, as there are different sizes of screens available to ensure more flexible production.
For rubber processing, rubber granulator is specially designed for rubber granulation process. The final product from the granulation process is much smaller than the product from the rubber crushing process. Therefore, it is usually the third stop in the tire recycling line. After the tire granulation process, the final product is usually rubber pieces without fiber and wire. The first and second shredders were able to shred the tyres into 20mm pieces of rubber, and then the granulator could further grind them into 5mm particles. Of course, the size required can be adjusted, as there are different sizes of screens available to ensure more flexible production.
Application
Uses of Plastic Granules

Plastic granules are an essential raw material for plastic manufacturers. They are very small granules, similar to grains of rice. Plastic pellets are commonly used materials in many industrial sectors, such as packaging, automotive, electronics, agriculture and many more. These pellets are made from recycled or virgin plastic raw materials and are processed into finished products such as bottles, bags, auto parts, toys, etc. Plastic granules are widely used in various industries, including the automotive, technology products, medical, bioplastics, electrical engineering and beverage sectors.

Rubber Crumb And Its Use
Rubber crumbs are currently the most widely used form of recycled rubber. It is used in rubberized asphalt applications. In addition, rubber crumbs can also be used as a surface material for track fields and runways, where it acts as a buffer. There are a variety of other applications that use rubber debris, including extruded and molded products, equestrian and agricultural MATS, sidewalks and trails, sealants, plastics and rubber elbows. The requirements for each application vary in particle size and purity.
Plastic crumbs are commonly used materials in many industrial sectors, such as packaging, automotive, electronics, agriculture and many more. These pellets are made from recycled or virgin plastic raw materials and are processed into finished products such as bottles, bags, auto parts, toys, etc.
Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer Cooperation
Zhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
FAQ
1. Are You Trading Company or Factory?
Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
