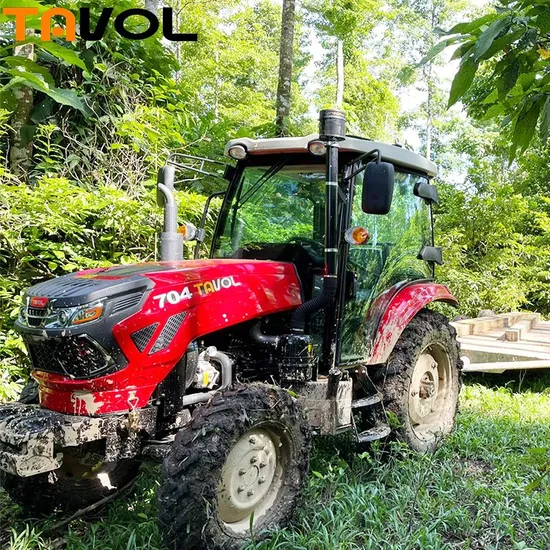

Tavol Brand Agricultural Machinery Multi Purpose Compact Mini Tractor 50HP 60HP 70HP 4WD Agriculture Farm Tractors

Product Description

Multi Purpose Compact Mini Tractor 50HP 60HP 70HP 4WD Agriculture Farm Tractors
Tavol tractors are widely used for ploughing, harrow,rotary-cultivating, sowing, irrigation, spraying, harvesting and transportation etc. In paddy fields, dry land, arid land, orchard and plastic greenhouse.
We Cooperate with Domestic Well-known Brand Tractor Parts Suppliers, such as: Gearboxes are Assembled by Ourselves, the Gears Inside are Made of Hangzhou Gears brand, the Bearings are Harbin Brand, the Engines are Xichai, Yuchai or YTO brand, and the Clutches are YTO ZC brand, the Hood and Cab is Equipped with Zhongyuan Brand, and the Tires use Taishan Or Xulun Brand etc.
Products range: 25hp-280hp Farm Tractors and Other Farm Machines
>>>>>>>>>Tavol 704 Tractor Specification<<<<<<<<<<

Tavol 70hp Tactor Main Parameters
Model		TL704
Machine parameters	Type	4×4
	Rated Traction( KN)	16.2
	PTO Max Power (KW)	43.8
	Dimensions(mm)	3560×1650×2350
Wheelbase(mm)		1965
Track(mm)	Front wheel(mm)	1150
	Rear wheel(mm)	1200-1360
Ground clearance(mm)	Minimum ground clearance(mm)	330
Minimum turning cricle radius	Use unilateral braking	2.85±0.20
	Not unilateral braking	3.15±0.30
Minimum use quality		1660
Gearbox	8F+8R Shuttle Shift
Steering System	hydraulic steering gear
Drive Train	Clutch	double acting clutch
Working equipment	Maximum lifting force at 610mm(KN)	≥10
	Suspension mechanism	Three-piont suspension type 1
PTO shaft	PTO Spedd(r/min)	540/760(option: 540/1000)
Tire	Front wheel specifications	6.00-16/6.5-16/7.5-16
	Rear wheel specifications	9.5-24/11.2-24/12.4-24/12.4-28
Engine	Type	Inline, 4 stroke, Water cooled
	Cylinder	4
Optional	Cabin	AC/Heater
	Roll bar
	Canopy
Perfusion volume	Radiater(L)	10
	Fuel tank(L)	29
	Engine oil pan(L)	5
	Driveline oil (L)	20
	Lifter(L)	9.5
This parameter table is for reference only, everything is based on actual products

Tavol Group is a High-tech Groups Companies, Which Engage in High-end Agricultural Equipment Manufacturing, Construction Machinery and High-precision Monitoring Sensors. Tavol Group is Located at the Foot of the World-famous Mountain Taishan. Has Passed ISO9001, CE, SGS, BV, AAA, WIPO Madrid International Trademark, High-tech Enterprise Certification and Special Equipment Manufacturing License etc.
The Mission of Tavol Group is to Assemble the Best Tractors With the Best of Heart, and Strive for the Smiles of One billion Farmers; With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards, Select the Best Quality Brand Tractor Parts. To ensure a 100% Quality Standard, We will Independent Development and Production the Core Tractor Parts, Continue to Increase Investment in New Models and Technologies.
High quality seaworthy package.
LCL is available. Optional CKD&SKD Package/ Full containers
Warranty & Spare parts
* 2 years warranty. * We will send spare parts free of charge to replace damaged parts within 24 hours.
* Free parts according to the value of the customer's goods.
* For customers who purchase regularly, we will give away different wearing parts every time we ship.
* Every year, engineers are dispatched for after-sales maintenance services.
>>>>FAQ
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Taian City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:5-15 days according to the different quantity.
