Hicas 2500kg Atc Engraving Carving Machine CNC Router Machine for Wood Furniture

Product Description

HICAS 2500kg Atc CNC Router Machine for Wood Furniture
Product Description
High Speed Woodworking CNC Nesting Router
1) It is economical and efficiency equipment, suitable for small and diversified production.
2) Work table can adsorb the entire board directly, no need any cutting preparation action.
3) It's high precision and efficiency equipment, suitable for the production mode of the milling and drilling compound machining.
4) It can be used in multi process processing, such as cabinet, solid wood door and so on.

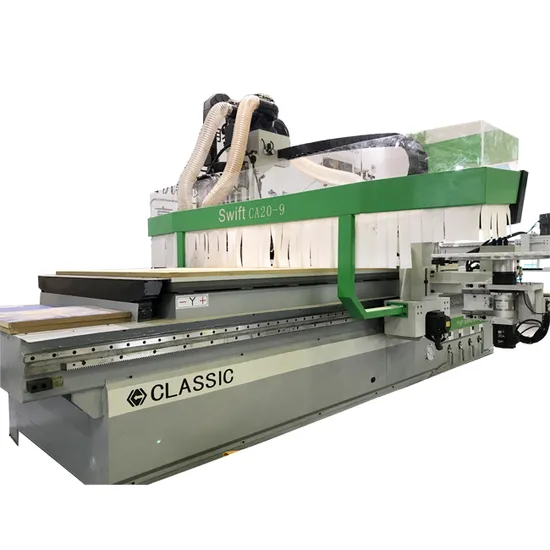

Product Display

This model equips 20pcs tool and 9v FAM drilling bag, can dilling holes and engrave, very suitable for making cabinet

Specification

Model	CA20-9 CNC woodworking center
Working Table Dimension	1220x2440 mm
X Y Z Working Area	3150*1780*300 mm
Workpiece Height	150 mm
Max Moving Speed	X axis :60m/min Y axis: 60m/min Z axis: 20m/min
Spindle Type	Auto changing spindle
Spindle speed	3000 - 24000 RPM
Vacuum Area	four vacuum areas
Spindle Power	9KW air cooling automatic tool change spindle
Vacuum Pumping Power	10HP(7.5KW)-250m 3 /h
CNC Controller	Syntec
Servo motor	Syntec

Details Images
1.Heavy Duty
The machine bed is made of 150*300, 150*200 rectangular tube and 10 mm steel plate.
a. High rigidity and high strength.
b. The 20mm steel plate is milled to 10mm
2.X&Y shaft drive adopts Japan SHIMPO Reducer, Germany Henryan High-precision Oblique Gear, with high-speed displacement positioning accuracy, reduce noise, rapid displacement up to 60m / min, smooth and accurate displacement, the maximum machining displacement speed can reach 30m / min .
3.European Certification CE Electric
4.Large Screen Display Interface
High Efficiency:
1. No Intermittent Tool Change
2. One-button Tool Change
3. Production Management System
a. The slab list automatic processing function
b. The system will automatically record the work process. simple and fast
4. Public side, accelerate through
5. Preheating machine
6. No need to return to the origin
a. It does not need to return to the original point for one-button start, direct processing, which can ensure the accuracy,
save processing time, improve work efficiency, and the device can work after booting.
b. Power-off breakpoint continuous carving function
7. Vacuuming
There is no dead angle in the dust collecting port, all the wood chips are sucked away
8. Drilling and even hitting, continuous punching, precise hole position, improved processing efficiency. 9. Automatic loading and unloading
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world. HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter. 1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback Package&Shipment
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1). Technical support by phone, email or WhatsApp/Skype around the clock.
2). Friendly English version manual and operation video.
3). Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The
USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German Contact Us
