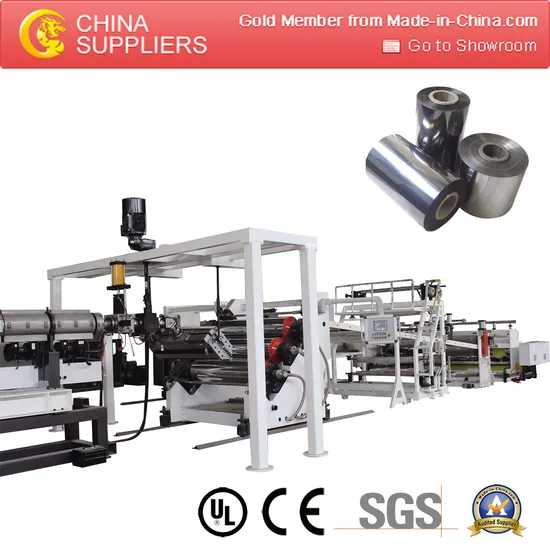

High Quality Pet Sheet Extrusion Line

Product Description

Production Range
PET sheet application : food packaging, toys, boxes, stationery, gift boxes and hand tools, metal packaging.
Antistatic Usage : electronic parts packaging.
General purpose : folding boxes, clothing lining collar, credit card sheet, printing tape, tape-mold labels.
PET sheet specifications:
0.2, 0.25, 0.3, 0.4, 0.5, 0.8, 1.0mm-915*1220mm
Machine Parts
1.PET Non-crystallization extruding system :The newest screw thread unit, low power consumption, high output, is suitable for PET sheet extruding.
2.Three roller calender: The high-precision three roller calender forming system, with servo control, hydraulic compress structure, is cuitable for the stable extrusion of sheet thickness at 0.15mm.
3.Precision die system:Can choose the self-regulation die to realize the change between extrusion mode and casting mode, is suitable for the sheet with different thickness.
4.Automatic rolling & cutting device:Easy to adjust, cuting straightness is high.Thickness:0.8-10mm,width:800-2000mm

SPECIFICATIONS FOR Pet/PETG/Petc Precision Sheet Making Machine
Model		GW120-GF1200 high exfficient	GP-75/40-GF1000 Non crystalline
Extruder Model		GW120/35 single screw	GP75/40 parallel double screw
Main motor power		110KW	132KW
Products thickness		0.15-1.5mm	0.15-1.5mm
Capacity		500kg/h	600kg/h

For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
if you are interested in this machine ,please contact me:
