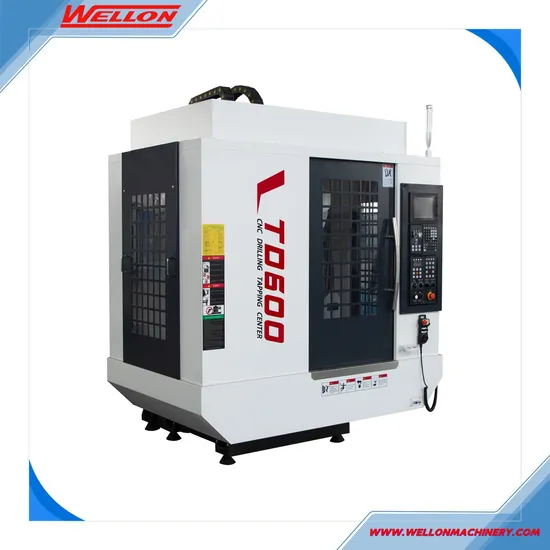

Chinese CNC Tapping Machining Center Td600 Td700 CNC Vertical Machine for Sale

Product Description

Product Description
Products Description:
Chinese CNC tapping machining center TD600 TD700 CNC vertical machine for sale Product Parameters
Main configuration & accessories:
High strength and good quality cast iron.
Precision linear guides for X/Y/Z axes.
Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
Adopting Japan NSK special screws angular contact ball bearing group.
Arm-clipping type magazine with rapid tool change.
Full closed protection guard.
Inclined at a large chip removal angle, so that can quickly clean the chips and accelerate the return speed of Cutting fluid
Powerful mechatronics application technology improves the response speed of the transmission chain, eliminates inactivity during the machining process, reduces non cutting time, and improves production efficiency.
Technical parameter:

Model	Unit	TD-600	TD-700
Work table size	mm	700x420	800x420
X-axis travel	mm	600	700
Y-axis travel	mm	400	450
Z-axis travel	mm	300	300
Work table T slot		3*14*125	3*14*125
Worktable Loading capacity	kg	300	300
Distance from spindle nose to table	mm	150-450	150-450
Distance from spindle center to column	mm	445	445
Spindle taper		BBT30	BBT30
Max.Spindle Speed	rpm	20000	20000
Magazine capacity	PCS	21	21
Max tool diameter	mm	80	80
Max tool length	mm	250	250
Max tool weight	kg	3	3
Tool change time(T-T)	sec	1 6	1 3
Main motor power	kw	5.5	5.5
X/Y/Z-axis servo motor power	kw	1.5/1.5/3.0	1.5/1.5/3.0
Cutting feed rate	mm/min	5-20000	5-20000
X,Y,Z axis rapid moving speed	m/min	48/48/48	48/48/48
Positioning accuracy	mm	±0.005/300	±0.005/300
Repeat positioning accuracy	mm	±0.003/300	±0.003/300
Ball leadscrew	mm	32/32/32	32/32/32
Linear guideway	mm	30/30/35	30/30/35
Machine Weight	kg	3000	3100
Power demand	KVA	20	20
Overall Size	mm	2220x1900x2300	2220x1900x2300

Standard Accessories:
Mitsubishi M80 controller
21 Arm clipping type Magazine from Taiwan
Linear guideway from Taiwan
Ball leadscrew from Taiwan
High speed spindle from Taiwan direct driven
Bearings from SKF
Full closed cover
Work lamp
Tri-color warning lamp
Lubricating system
Coolant system
Air gun + Water gun
MPG
Optional accessories:
Fanuc 0i MF plus controller
Syntec 22MA controller
Siemens 828D controller
Chain type chip conveyor
Center through spindle CTS 20bar
