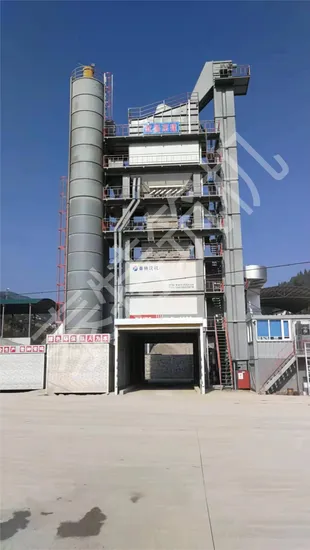

Lb-4000 Asphalt Concrete Mixing Plant, Mixing Station Backyard Equipment

Product Description

Product introduction:
The overall layout is compact, novel structure, the independent innovation and absorb the advanced technology, excellent performance.
The unique function of environmental protection, the seal, low noise, dust standards.
Advanced microcomputer control system DE Danny, PLC module can realize the automatic and semi-automatic, manual but connected controlling and single control. Real-time dynamic simulation screen display, all-round self trouble diagnosis The machine adopts electronic measurement. Advanced double trechometer way has the function of automatic compensation, high measuring accuracy.
The core components are imported components assembly and become, fully guarantee the reliability of the whole equipment
THE MAIN TECHNICAL CHARACTERISTICS:

content/type	LB-4000
Rated productivity(t/h)	240-320
Mixing bar capacity(kg/batch)	4000
Total installed capacity (Finished product warehouse is not included)(kw)	857
Total floor area(m×m)	55×40=2200
Fuel consumption rate(kg/t)	≤6.5
Type of fuel	diesel fuel,heavy oil,natural gas
Finished material temperature(ºC)	160
Cumulative measurement accuracy of ore materials(%)	≤±0.3
Measurement accuracy of asphalt materials(%)	≤±0.1
Powder metering accuracy(%)	≤±0.2
Oil-stone ratio deviation(%)	≤±0.1
Stable and accurate discharge temperature(ºC)	±5
Ambient noise[dB(A)]	≤80
Noise in the operator's ears [dB(A)]	≤70
Dust removal method	Compartment, high-pressure pulse bag
Dust emission concentration[mg/Nm3]	≤80
