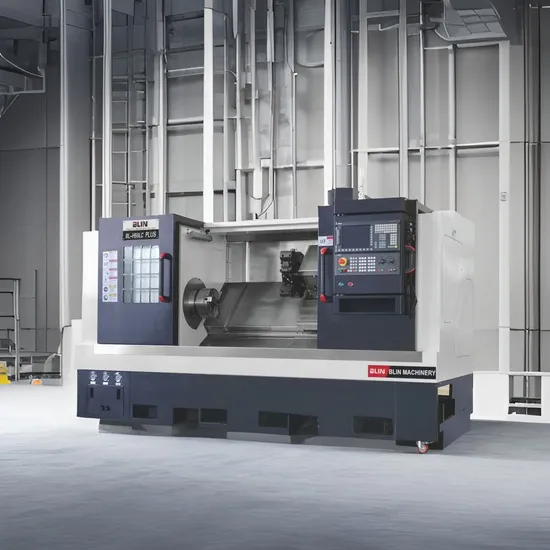

3 Axis Strong CNC Turning Lathe with C Axis (BL-H50L/LC PLUS)

3 Axis Strong CNC Turning Lathe with C Axis (BL-H50L/LC PLUS)

US$48,000.00-70,000.00 1 set (MOQ)

Basic Info.

Model NO.
BL-H50L/LC
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
520mm
Max. Swing Dia. Over Slide
300mm
Max. Turning Dia.
400/350mm
Max. Turning Length
1000/1500/2000/3000mm
Spindle Bore
79/92mm
Spindle Type
A2-6/A2-8
Spindle Speed
4000/2500rpm
Chuck Size
8′′/10′′/12′′
Spindle Motor Power
11/15kw
Transport Package
Polywood Case
Specification
520*1000/1500/2000/3000mm
Trademark
BLIN
Origin
China
HS Code
8461500090
Production Capacity
480 Units/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description


- Adopt ROLLER type linear guideway
- Adopt TAIWAN technology, most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt 45°integral slant bed design
- Adopt china top class HT300 cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Adopt high precision spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed
- Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway(* If mount hydraulic steady rest, the guideway of tailstock to be BOX guideway)
- H50L PLUS mount 12T Hydraulic-servo tool turret
- H50LC PLUS mount C axes and 12T GERMAN SAUTER Powered tool turret
Details:
Item Specification Unit BL-H50L PLUS BL-H50LC PLUS
Capacity Max. swing dia. over bed mm Φ520
Max. swing dia. over slide mm Φ300
Max. turning dia. mm Φ400 Φ350
Max. turning length mm 1000/1500/2000/3000
Spindle Spindle bore mm Φ79(Φ92*)
Spindle type / A2-6(A2-8*)
Spindle speed rpm 4000(2500*)
Chuck size / 8''(10''*,12''*)
Max. bar through dia. mm Φ51(Φ74*,Φ79*)
Spindle motor power kw 11(15*)
Spindle dividing accuracy ° / 0.001°
X/Z axes X axes travel mm 220 210
Z axes travel mm 1000/1500/2000/3000
X axes ball screw dia./pitch mm Φ32/10
Z axes ball screw dia./pitch mm Φ40/12
X/Z axes linear guideway width mm 35/45(ROLL type)
X/Z axes rapid moving speed m/min 24/20
Tool turret Tool post type / 12 station hydraulic-servo tool turret 12 station servo powered tool turret BMT55
Live tool speed rpm / 4500
Toolshank size mm 25×25, Φ40
Tailstock Tailstock quill travel mm / /
Taisltock quill dia. mm / /
Tailstock quill taper / MT5#
Tailstock body travel mm 900/1400/1900/2900
Others X/Z axes positioning accuracy mm ±0.005
X/Z axes repeated positioning accuracy mm ±0.003
Overall size mm 3300/3800/4300/5300×1700×1800
N.W. kg 6000(for 1000mm) 6500(for 1000mm)

Main parts list:
Item BL-H50L PLUS BL-H50LC PLUS
CNC controller GERMANY-SIEMENS GERMANY-SIEMENS
X,Z axes servo motor&driver GERMANY-SIEMENS GERMANY-SIEMENS
Spindle servo motor&driver CHINA Top(opt.:SIEMENS) GERMANY-SIEMENS
Tool turret index motor&driver TAIWAN-DELTA GERMANY-SIEMENS
Live tool motor&driver / GERMANY-SIEMENS
Spindle TAIWAN-KENTURN
Spindle encoder CHINA brand GERMANY-HEIDENHAIN
Bearing JAPAN NSK/GERMANY FAG
Ball screw TAIWAN HIWIN/PMI
Linear gudieway TAIWAN HIWIN/PMI
Tool turret INDIA-PARAGATI/TAIWAN MYKUN/GERMANY-SAUTER GERMANY-SAUTER
Chuck&cylinder TAIWAN-AUTOGRIP
Hydraulic parts TAIWAN/JAPAN
Lubrication pump JAPAN-HERG
Nuts TAIWAN-YINSH
Main electric parts FRANCE-SCHNEIDER

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic-servo tool turret
-Hydraulic tailstock
Optional configuration:
-SYNTEC/SIEMENS 828D/FANUC CNC controller
-C axes& powered tool turret
-Y axes
-Automatic chip conveyor
-Tool setting probe

Other models choice:
