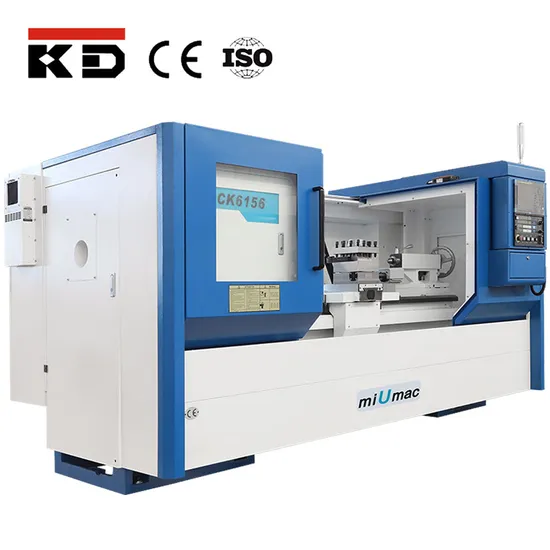

CNC Turning Machine of Lathe Chuck 250mm
| US$52,700.00-55,835.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CK6156
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Spindle Bore
80mm
Spindle Nose
A2-8
Spindle Speed
27-1630rmp
Spindle Range
4
Transport Package
3100/3500/4000/4500/5500X2100X2300mm
Specification
2250/2500/3000/3500/4500x1250x1580mm
Trademark
kaida
Origin
Zhejiang
Production Capacity
300 Sets/ Month
Product Description
FEATURES AT A GLANCEPRODUCT SPECIFICATIONS
ITEMS | CK6166 | CK6156 |
Max. swing over bed | Ø 660 mm | Ø 560 mm |
Max. swing over carriage | Ø 430 mm | Ø 330 mm |
Width of bed | 405 mm | |
Maximum turned length | 750/1000/1500/2000/3000 mm | |
Max. turning length | 650/900/1400/1900/2900mm | |
Spindle nose | D8 | A2-8 |
Spindle bore | Ø 105 mm | Ø 80 mm |
Cone hole diameter and taper of spindle hole | Ø 113 1: 20 | MT. No. 7 |
Steps of spindle speed(Manual) | 4 (Variable Within Each Step ) | |
Range of spindle speed | 27~135 55~270 160~805 325~1630 r/min | |
Rapid feed for Axis Z | 10m /min | |
Rapid feed for Axis X | 8 m /min | |
Max. travel of Axis Z | 720/970/1270/1970/2970mm | |
Max. travel of Axis X | 365 mm | 320 mm |
Min. input | 0.001 mm | |
Tool post stations | 4-ways or 6-ways | |
Tool cross section | 32× 32 mm | |
External diameter | Ø 75 mm | |
Taper of bore | MT. No. 5 | |
Max. Traverse | 150 mm | |
Power of main motor | 11 KW | 7.5 KW |
Power of cooling pump | 90W | |
Overall dimensions(L× W× H) | 2250/2500/3000/3500× 1250× 1580 mm | 2250/2500/3000/3500/4500× 1200× 1520 mm |
Net weight | 2800/3100/3700/4300/5300 kg | 2700/3000/3500/4000/4600 kg |
