Assorted Magnetic Bars for Different Diameter Needs

Assorted Magnetic Bars for Different Diameter Needs

US$38.00
1-4 Pieces
US$37.00
5-9 Pieces
US$36.00
10-49 Pieces
US$35.00
50-99 Pieces
US$33.00
100+ Pieces

Basic Info.

Model NO.
Magnetic Bar
Coating
SUS316L
Grade
N50
Gauss Value
13000 Gauss
Surface Material
Stainless steel Shell
Length
Max 2500 mm Lengtm
Standard Diameter
25 mm
Size
Customized
OEM
Acceptable
Lead Time
Within 3 Days for Standard Products
End Degsin
Screw or Thread Hole
Transport Package
Cartons
Specification
Magnetic Bar
Trademark
Naipu Magnetics
Origin
Ningbo China
HS Code
85051110
Production Capacity
10000 PCS /Month

Product Description

Product Description

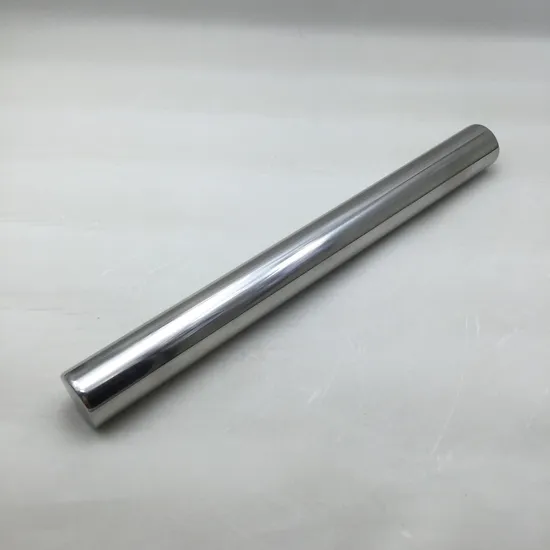

Magnetic Bar with different diameter
Product Parameters
Magnetic bar are constructed by strong permanent magnet with stainless steel shell. Either round or square shape bars are available for customers' requirements for special applications. Magnetic Bar is used for removing ferrous contaminants from free flowing material. All the ferrous particles like bolts, nuts, chips, damaging tramp iron can be caught and held effectively. So it provides a good solution of material purity and equipment protection. Magnetic Bar is the basic element of the grate magnet, magnetic drawer, magnetic liquid traps and magnetic rotary separator.
Optional features:
1. The shell material: SS304, SS316, SS316L;
2. The magnetic strength grade: 2000Gs, 3000Gs, 6000Gs, 8000Gs, 10000Gs, 12000Gs;
3. Working temperature grade: 80, 100, 120, 150, 180, 200, 250, 300 degree Celsius;
4. Type of ends: Nail head, eye nuts, thread hole, threaded rod and other kind of ends for necessary mounding.
5. Sizes: Standard 25 millimeter ( 1 inch ) in diameter with any length up to 2500 mm. Other common diameter (mm. ): 16, 19, 20, 22, 28, 32, 38, 50, 76, 89, 100;
6. Customer requirements could be satisfied. Detailed Photos
FAQ
FAQ:
1.What about the lead time?
(1) Sample: 2-3 days.
(2) Batch quantity:5-7 days.
3.What's the MOQ?
Common regular Size: ≥1 Piece.
3. Terms of Paymemt:
(1). T/T in advance
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt
4. Package & Shipment :
Package: Magnetic Isolation in wooden carton
(1). By Express(DHL, FedEx, TNT, UPS): Door to door, Short Delivery time, 3-5 days.
(2). By Air: Short Delivery Time, 3-7 days.
(3). By Sea: Cheap Shipping Cost, 7-35 days
