High Quality Heavy Duty Horizontal CNC Lathe for Turning 45t Cylinder, Steam Turbine

High Quality Heavy Duty Horizontal CNC Lathe for Turning 45t Cylinder, Steam Turbine

US$150,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CK61315
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wood Box Package
Specification
CK61315*8000
Trademark
NTM or customized brand is available
Origin
Qingdao, China
HS Code
84581900
Production Capacity
300 Sets /Year

Product Description

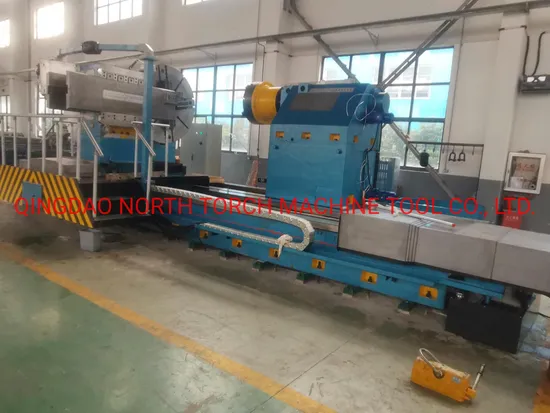

China Professional Heavy Duty Horizontal CNC Lathe for turning 8000 mm length turbine,Cylinder,shaft with 40 T load capacity
The definition of heavy duty horizontal lathe ?
1. It has heavy load capacity, generally it can load above 20 T work-piece, normally the popular load capacity is 45T , such as sugar mill cylinder, roll, turbine, shaft , etc.
2. It has more complex internal strucutre in headstock of horizontal lathe machine, For example: the spindle diameter has more and larger diameter, it has much more bearings and gears in headstock of lathe. All spindle shafts are froged and precisionly machining .
3. The lathe has 4 guide rails with 2000 mm wide. The common horizontal lathe has only 2 guide rails with only 755 mm or 1100mm wide .
4. Tailstock is equipped with a hydraulic clamping system with a pressure display device. It can display the clamping pressure between headstock and tailstock of the heavy duty horizontal lathe machine
5. Tailstock spindle is a special internal built-in rotation spindle with high accuracy and precision, it can be used as both live center and dead center. It can be changed per the user's demands.
Our special features in making heavy duty horizontal lathe machine. Both conventional lathe and cnc lathe are available per customer's request.
1. Headstock is a kind of heavy duty type with more complex structure internally, such as it has more bearings, gears, shafts , the Torque Ratio is much more large than others. So that our horizontal lathe can widly used be turning cylinder, roll, turbine, shaft. etc All or our spindle shafts are froged material.
2. Design a 4 guide rails with heavy load capacity , high rigidity and stability during heavy cutting process. it can be equipped with RENISHAW Measure Decive and grating rulers.

3. Tailstock is equipped with a hydraulic clamping system and pressure display device to display the pressure between centers. It is a very safe protection design, the operator can adjust the pressure according to the data display in the device.
3D Design for each horizontal lathe machine after order confirmation.
Main Technical Parameters of Heavy Duty Horizontal Lathe Machine
CK61 Heavy Duty Horizontal CNC Lathe
Model Unit CK61160 CK61200 CK61250 CK61315
Brand NTM NTM NTM NTM
Machining Technical Parameters Max.swing diameter over machine bed mm 1600 2000 2500 3150
Max.swing diameter over cutting tool carriage mm 1250 1650 2050 2650
Max.work-piece weight T 32 63
Max.work-piece length mm 4000-20000
Machine Bed Parameters Guide rail type Rectangle 4 guide rails
Guide rail width mm 1600 2000
Headstock Spindle speed Stepless variable frequency
Spindle speed range r/min 1-100 1-100 1-100 0.5-80
Main motor power KW 45 55 75 90
Centers ° 75
Max.chuck diameter mm 1400 1600 2000 2500
Max. chuck torque knm 80 120
Feed Data Max.X axis stroke mm 800 1000 1250 1575
Max.Z axis stroke mm 4000-20000
Feed range of X Axis mm 1-200
Feed range of Z Axis mm 1-200
Rapid moving speed of X axis mm/min 3000
Rapid moving speed of Z axis mm/min 2500
Tailstock Diameter of tailstock sleeve mm 300 420
Stroke of tailstock sleeve mm 300
Taper of tailstock sleeve ° 75
Rapid moving speed of tailstock mm/min 1500
Other datas Machine Length mm Depends on the work-piece length
Machine Width mm 3500 3800 4000 4200
Machine Height mm 2300 2600 3000 3500
Control system Touch Operation Panel

For More Other Details, please feel free to contact me.
Thank you
Tag: Heavy Duy Lathe, Horizontal Lathe, CNC Lathe, CNC Machine Tool, Vertical Lathe, CNC Milling Lathe Machine, CNC Roll turning Lathe
