Hot selling high output new developed strong reducer auto sunflower seeds rapesed peanut vegetable olive mustard oil press machine coconut screw oil expeller

Product Description

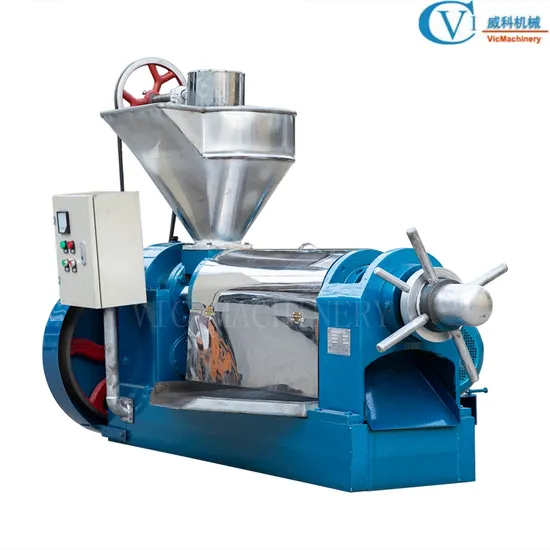

New developed strong reducer coconut oil expeller oil pressers
Product Description
Application:
This oil pressers are advanced oil expeller which is widely used in pressing oil from vegetable oil seeds, such as soybean, peanut, sunflower seeds, cotton seeds, sesame, tea seeds, copra, jatropha seeds, castor seed, coconut etc. And the product oil is for both edible and biodiesel fuel purpose.
The oil expeller screw oil press machine has advantage of high efficiency, low consumption, simple operating, stable function, easy maintenance, high productivity and high oil output.
This 6YL-A series of oil presses has been improved in many places, especially the reducer gear has been upgraded.
Main date about the screw oil press machine

Model	6YL-130A screw oil press machine
Capacity	400-450kg/h for oil seeds
Power	15-18.5kw(380V/50Hz/3p)
Residue oil in cake	Less than 8%
Size	2180X610X1480mm
Weight	850KG

More models

Model	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
6YL-95A	200kg /h	7.5-11kw	2155x580x1250	590kg
6YL-120A	300kg /h	11-15kw	2150x610x1300	750kg
6YL-130A	450kg /h	15-18.5kw	2180x610x1480	850kg
6YL-160A	550kg /h	18.5-22kw	2180x610x1480	1050kg
6YL-200	1500kg /h	30-45kw	2560X850x1900	3500kg

More pictures
Forced feeding system with stirring function keeps feeding uniform and continuous
The wide tooth surface gear reducer transmits the torque more smoothly, and the life span
is 1.5 times that of the traditional gears.

Optimized design of bar and round press system for higher pressure and more oil output
The cake outlet with adjustable thickness of oil cake is made of ductile iron, which is not
easy to be damaged(The material used by other manufacturers is gray cast iron)
Adjustment system with handle for easy and labor-saving use
Safe and convenient control system with voltage indication and indicator light
Stainless steel feed hopper,cover and oil pan are clean and hygienic for easy cleaning
Oil press machine spare parts
Workshop corner
Package picture
Other 6YL screw oil presses
Our Factory
