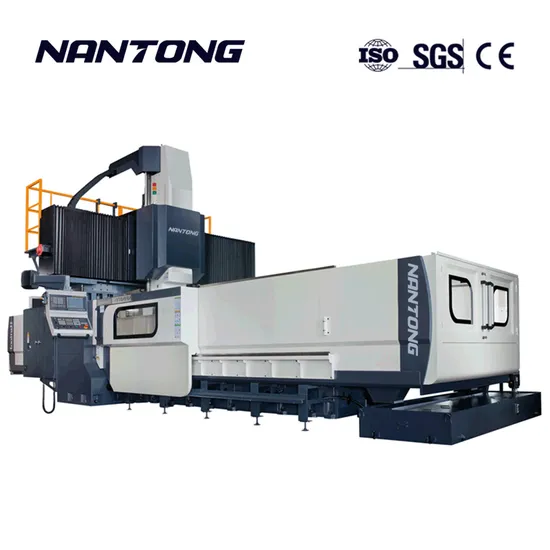

China Unique Double Columns Machine Center CNC Gantry Milling Machine

China Unique Double Columns Machine Center CNC Gantry Milling Machine

US$15,900.00-95,600.00 1 Piece (MOQ)

Basic Info.

Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Container
Trademark
nantong
Origin
Nantong
Production Capacity
300 Sets/Year

Product Description


Machine Parameters
Model Unit SKX2016 SKX2500 SKX3020 SKX4025
Travel
X axis mm 2,200 2,700 3,200 4,200
Y axis mm 1,600 / 2,000/2500/3000
Z axis mm 800(1,000-opt.)
Distance from spindle nose to table mm 150 - 950(150 / 1,150-opt.)
Distance between two column mm 1,700 / 2,100/2600
Working table
Table Length mm 2,000 2,500 3,000 4,000
Table Width mm 1,600 / 2,000
Table Load kg 6,000 7,000 9,000 10,000
T- Slot (Width x Number x Pitch) mm 22x7x180 / 22x9x180
Spindle
Spindle Taper - BT-50 / ISO-50 / CAT-50
Spindle Speed rpm 3,000(6,000-opt.)
Spindle motor(cont./30 minutes rated) kw 18.5 / 22 (22/26-opt.)
Feed
Rapid Traverse(X/Y/Z) m/min 12 / 12 / 15 10 / 12 / 15
Cutting feedrate mm/min 7,000
Accuracy
Positioning Accuracy mm ±0.005 / 300 ; ±0.015 / Full travel
mm P0.03 P0.035
Repeatability mm ±0.003
mm 0.025 0.028
ATC
Tool magazine capacity pcs 32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty) mm Ø125/245
Max. tool length mm 350
Max. tool weight kg 20
Others
Power required kva 65
Pneumatic input pressure kg/cm2 6.5
Machine net weight tons 20 / 22 22 / 24 24 / 26 28 / 30
Floor space (LxWxH) m 8.5x5.1(5.5)x4.7 10.5x5.1(5.5)x4.7 12.5x5.1(5.5)x4.7 15.2x5.1(5.5)x4.7

Machine Configuration
Automatic lubrication system
Spindle oil cooler
Air blast through spindle
Manual Pulse Generator
Working lamp
3-color alarm lamp
RS-232 interface
Heat exchanger for electrical cabinet
Water gun and air gun interface
Cutting coolant system
Twin auger chip removal system
Belt type chip conveyor with cart
X axis Heidenhain Linear Scale
Sub-table
3 axes manual pulse generator for mold processing
Coolant through spindle at 20/40/70 bar
Coolant through tool holder interface
Air conditioner for electrical cabinet
Transformer
Oil skimmer
Oil mist collector

Company Introduction
NANTONG YIJI MACHINERY CO., LTD
Nantong YIJI Machinery Co., Ltd was founded in 1988,which specialized in manufacturing move column cnc machine center, floor type boring machine, cnc gantry milling machine, automatic solution and professional machine tools. Nantong YIJI Machinery Co., Ltd has integrated business concept of "Quality is essence, excellence, full participation", and constantly casting and enhance the "YIJI" machine Brand quality. Relies on Specialized design, mature production workman ship, Strict QC Management, quick integrated solution, nice after service and has won trust from vast customers. Our market share has been expanded .Our products with more varieties, full range ,have enjoyed good sales to the 30 countries in Europe, America, Southeast Asia. And Have won good reputation So far. Our company has enjoyed import/export rights, obtained export product license, CE certificated and Passed ISO9001 quality system certification.

Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Our Service
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Welcome your inquiry!
