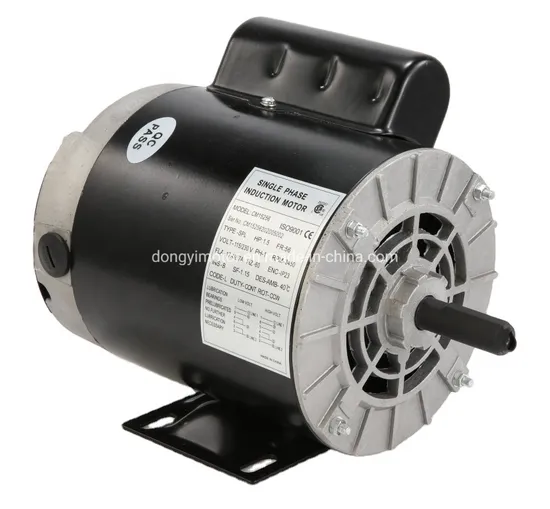

1HP ~ 10HP Specially Designed Air Compressor Single Phase Motor
| US$77.55-499.99 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
CM Series
Number of Stator
Single-Phase
Function
Control
Casing Protection
Closed Type
Number of Poles
2
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Frame Size
56~215t
Winding
100% Copper Wire
Protection Class
IP23
AC Voltage
115/208-230V
Housing
Steel Shell & Cast Iron Housing
Insulation Class
F
Service Factor
1.0 & 1.15
Duty
Continuous(S1)
Installation
Horizontal
Pole
2/4
Motor Type
Asynchronous Three Phase
Frequency
50/60Hz
Cooling Method
IC411
Enclosure Type
Odp / Odtf
Rotation
Ccw & Cw/Ccw
Transport Package
Plywood Box or Carton Box
Specification
Induction Motor
Origin
China
HS Code
8501400000
Production Capacity
10000 Pieces/ Month
Product Description
Product DescriptionNEMA Air Compressor Motors
Standard Features:
---------------------------------------------------------------------
1HP ~ 10HP
3600/1800 RPM
2/4 Pole
56 & 143/5T & 182/4T & 213/5T
IP23 Protection
Class B Temp Rise
Class F Insulation
Rolled Steel & Cast Iron Construction
Removable Universal Base (56,143/5T)
Overload Protection with Manual Reset
Capacitor Start / Capacitor Run
| General CM Serie Motor 2 Pole | |||||||||||
| MODEL | HP | Voltage | HZ | POLES | RPM | Frame | Insulation Class | Enclosure Type | Service Factor | ROT | Shell Material |
| CM01256 | 1 | 115/230 | 60 | 2 | 3600 | 56 | F | ODP | 1.0 | CCW | Steel Shell |
| CM15256 | 1.5 | 115/230 | 60 | 2 | 3600 | 56 | F | ODP | 1.0 | CCW | Steel Shell |
| CM02256 | 2 SPL | 115/230 | 60 | 2 | 3600 | 56 | F | ODP | 1.0 | CCW | Steel Shell |
| CM03256 | 3SPL | 115/230 | 60 | 2 | 3600 | 56 | F | ODP | 1.0 | CCW | Steel Shell |
| CM05256 | 5SPL | 208-230 | 60 | 2 | 3600 | 56 | F | ODP | 1.0 | CCW | Steel Shell |
| 1203T-ODP | 3 | 208-230 | 60 | 2 | 3600 | 143/5T | F | ODP | 1.0 | CCW | Steel Shell |
| 1205T-ODP | 5 | 208-230 | 60 | 2 | 3600 | 143/5T | F | ODP | 1.0 | CCW | Steel Shell |
| Newly Designed Type 1 | |||||||||||
| MODEL | HP | Voltage | HZ | POLES | RPM | Frame | Insulation Class | Enclosure Type | Service Factor | ROT | Shell Material |
| CM032182T | 3 | 208-230 | 60 | 2 | 3600 | 182/4T | F | ODP | 1.15 | CW/CCW | Steel Shell |
| CM034184T | 208-230 | 60 | 4 | 1800 | 182/4T | F | ODP | 1.15 | CW/CCW | Steel Shell | |
| CM052184T | 5 | 208-230 | 60 | 2 | 3600 | 182/4T | F | ODP | 1.15 | CW/CCW | Steel Shell |
| CM054184T | 208-230 | 60 | 4 | 1800 | 182/4T | F | ODP | 1.15 | CW/CCW | Steel Shell | |
| CM722184T | 7.5 | 208-230 | 60 | 2 | 3600 | 182/4T | F | ODP | 1.15 | CW/CCW | Steel Shell |
| CM724215T | 208-230 | 60 | 4 | 1800 | 213/5T | F | ODP | 1.15 | CW/CCW | Steel Shell | |
| CM102215T | 10 | 208-230 | 60 | 2 | 3600 | 213/5T | F | ODP | 1.15 | CW/CCW | Steel Shell |
| CM104215T | 208-230 | 60 | 4 | 1800 | 213/5T | F | ODP | 1.15 | CW/CCW | Steel Shell | |
| Newly Designed Type 2 with Fan | |||||||||||
| MODEL | HP | Voltage | HZ | POLES | RPM | Frame | Insulation Class | Enclosure Type | Service Factor | ROT | Shell Material |
| CMF032182T | 3 | 208-230 | 60 | 2 | 3600 | 182/4T | F | ODTF | 1.15 | CW/CCW | Steel Shell |
| CMF034184T | 208-230 | 60 | 4 | 1800 | 182/4T | F | ODTF | 1.15 | CW/CCW | Steel Shell | |
| CMF052184T | 5 | 208-230 | 60 | 2 | 3600 | 182/4T | F | ODTF | 1.15 | CW/CCW | Steel Shell |
| CMF054184T | 208-230 | 60 | 4 | 1800 | 182/4T | F | ODTF | 1.15 | CW/CCW | Steel Shell | |
| CMF722184T | 7.5 | 208-230 | 60 | 2 | 3600 | 182/4T | F | ODTF | 1.15 | CW/CCW | Steel Shell |
| CMF724215T | 208-230 | 60 | 4 | 1800 | 213/5T | F | ODTF | 1.15 | CW/CCW | Steel Shell | |
| CMF102215T | 10 | 208-230 | 60 | 2 | 3600 | 213/5T | F | ODTF | 1.15 | CW/CCW | Steel Shell |
| CMF104215T | 208-230 | 60 | 4 | 1800 | 213/5T | F | ODTF | 1.15 | CW/CCW | Steel Shell | |
| Newly Designed Type 3 with Cast Iron Shell | |||||||||||
| MODEL | HP | Voltage | HZ | POLES | RPM | Frame | Insulation Class | Enclosure Type | Service Factor | ROT | Shell Material |
| CMW032184T | 3 | 208-230 | 60 | 2 | 3600 | 182/4T | F | ODP | 1.15 | CW/CCW | Cast Iron |
| CMW034184T | 208-230 | 60 | 4 | 1800 | 182/4T | F | ODP | 1.15 | CW/CCW | Cast Iron | |
| CMW052184T | 5 | 208-230 | 60 | 2 | 3600 | 182/4T | F | ODP | 1.15 | CW/CCW | Cast Iron |
| CMW054184T | 208-230 | 60 | 4 | 1800 | 182/4T | F | ODP | 1.15 | CW/CCW | Cast Iron | |
| CMW722184T | 7.5 | 208-230 | 60 | 2 | 3600 | 182/4T | F | ODP | 1.15 | CW/CCW | Cast Iron |
Company Profile
Company Profile and Production Workshop
Taizhou Dongyi Electric Motor Co., Ltd. Locates at Taizhou City Zhejiang China, which is close to Yong-guan expressway Wenling East exit, also close to the international famous import and export ports Ningbo and Shanghai, which is very convenient to all transportation.
Wenling Sihai Motor Factory who was one division of Taizhou Dongyi Electric Motor in the past, specializes in researching, developing and manufacturing NEMA standard electric motors and IEC standard three & single phase motors.At Sihai Motor, our devoted engineering team and production team are now turning out a variety of electric motor lines with cutting-edge technologies, NEMA premium efficiency motors from fractional 42 frame motors to 587 frame size, ranging from 1/3hp to 500 HP; NEMA ODP& TEFC, Single & Three Phase with casting iron, rolled steel shell, stainless steel motor materials electric motors. As well as IEC metric motors 80 though 355 frame size.We have been enjoying a good credit and reputation. For any inquiries, questions or suggestions, please feel free to contact us. Looking forward to cooperating with you in near future!
Company Certification
Packaging & Shipping
About the packaging, due to the weight and size of the motor, we have several packaging options, Please see the following packing information below:
There are two ways of carton packing, foam and EPE Foam. EPE Foam is a new buffering and joltproof packing material with good heat resisting, damp proof, wear preventing and anti-corroding function. Customers can choose for themselves.
Product Application
, Applications:
fans, pumps, machine tools,
compressors, conveyors,
machinery and other
general machinery equipment,
can also be in the petroleum,
chemical, steel, mining, etc.
Recommend Products
FAQ
Q: What is the payment terms?
A: T/T is available. (30%deposit before production, 70%balance before shipping)
Q: What is your delivery time?
A: Within 25-30 days after receiving deposit.
Q: Do you offer OEM service?
A: Yes. We accept OEM service.
Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.
Q: What's your MQQ?
A: Our MQQ is 10 Sets.
Q: How do you pack your products?
A: Small motors are packed in carton or plywood cases, and large motors in wooden cases.
