Precision Universal CNC Engraver Machine Center Vmc855

Precision Universal CNC Engraver Machine Center Vmc855

US$19,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC855
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
Customzied
Weight
5000kg
X/Y/Z Rapid Traverse Speed
24/24/24m/Min
Distance Between Spindle Nose and Workta
120-600mm
Max. Worktable Load
500kg
Max. Spindle Speed
8000rpm(Optional:10000 )
Table Size
1100X500mm
Main Motor Power
11/15kw
Spindle Taper
Bt40
Cutting Feed Speed
1-8000mm/Min
T Slot(Number-Width-Pitch)
5-18X90
X Axis Travel
1100mm
Y Axis
500mm
Z Axis
500mm
Tool Magazine
Arm 24
Transport Package
Wooden Case
Specification
260.00cm * 228.00cm * 255.00cm
Trademark
wewoo
Origin
China
HS Code
8459619000
Production Capacity
300/Month

Packaging & Delivery

Package Size
260.00cm * 290.00cm * 280.00cm
Package Gross Weight
5000.000kg

Product Description

Vmc850 3/4/5 Axis Milling Cutting Drilling Tapping CNC Vertical Machine Center
Product Description
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the WEWOO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the WEWOO MACHINE.
Features: 1. Resin sand castings.
2. Taiwan's three-axis ball screw. (Taiwan)
3. Precision lock nut. (Shanghai Yu Kai) (standard)
4. Taiwan-made spindle, Japan NSK bearing, spindle pulley and belt.
(Taiwan Health) 8000 rpm
5. Taiwan-made pressurized cylinder. (Taiwan Hao Orange) (standard)
6. Imported bearings (P4 grade). (standard)
7. Domestic high quality coupling. (Tianjin Longchuang) (standard)
8. Tool magazine 24 bucket knives (Tokyo, Taiwan)
9. X, Y, Z (bottom) stainless steel rail protection. (standard)
10. Imported electronic lubrication pump. (standard)
11. Domestic cooling system water pump, water tank. (standard)
12. Pneumatic components, . (standard)
13. Headstock weight. (standard)
14. System.Siemens 828D, FANUC, Mitsubishi M80A.
15. Machine alarm light (standard)
The machine is equipped with an anti-impact device, which can absorb the vibration caused by the impact caused by the worker's operation error, so as to minimize the damage of the impact and ensure the original accuracy;
The oil and water separation design can effectively separate the lubricating oil from the cutting fluid, and prevent the cutting fluid from deterioration, affecting the processing quality.
Specifications
Specifications Units VMC850 VMC855
Table size mm 1100x500 1100x550
X axis travel mm 800 800
Y axis travel mm 500 550
Z axis travel mm 500 550
Max. worktable load kg 500 550
T slot(number-width-pitch) 5-18x90 5-18x100
Max. spindle speed rpm 8000(Optional:10000 ) 8000(Optional:10000 )
Spindle taper mm BT40 BT40
Main motor power kw 7.5/11 7.5/11
X/Y/Z rapid traverse speed m/min 48/48/48 48/48/48
Cutting feed speed mm/min 1-8000 1-8000
Guide rail type Linear rail Linear rail
Distance from spindle axis to column surface mm 550 550
Distance between spindle nose and worktable surface mm 120-620 150-650
Positioning accuracy mm ±0.0075 ±0.0075
Repeat positioning accuracy mm ±0.005 ±0.005
Tool magazine Arm 24 Arm 24
Max. tool diameter mm φ100 φ100
Max. tool length mm 350mm 350mm
Max.tool weight kg 8 8
Machine weight kg 5000 6000
Overall dimension mm 2600*2280*2550 2600*2280*2550

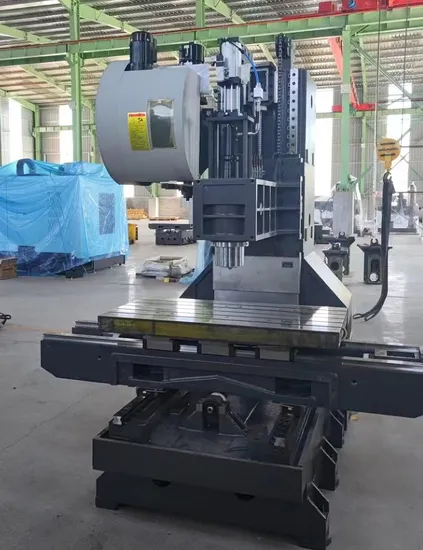

Detailed Photos

TAIWAN PRECISION SPINDLE
1. Spindle taper is BT50;
2. Spindle speed 6000rpm , can enlarge to 8000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change

PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
LEAD SCREW AND COUPLING
Taiwan precision lead screw.
1.Lead screw bearing use SKF or NACHI bearing,
2. Coupling R+W directly connected .

Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
