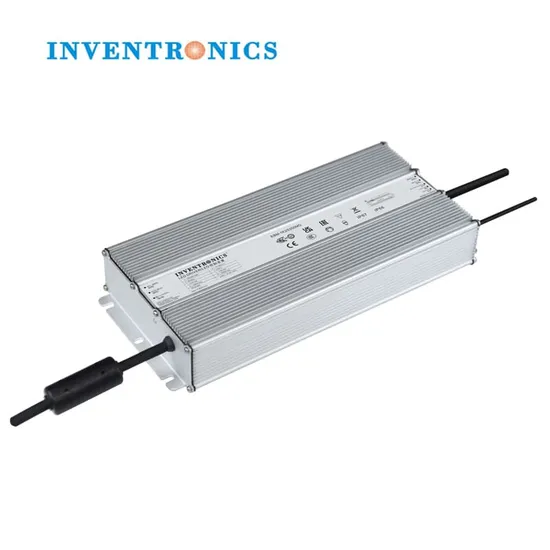

Inventronics Ebm-1K2sxxxmg 1200W Isolated 0-10V PWM 3-Timer-Modes Dimmable LED Drivers

Product Description

Product Parameters Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number
							220Vac	277Vac
0.26-3.5A	2.6-3.5A	3.5 A	176-305Vac 190~250Vdc	171 ~ 462Vdc	1200W	95.5%	0.99	0.96	EBM-1K2S350MG
0.395-5.25A	3.95-5.25A	5.25 A	176-305Vac 190~250Vdc	114 ~ 304Vdc	1200W	95.0%	0.99	0.96	EBM-1K2S525MG
0.555-7.4A	5.55-7.4A	7.4 A	176-305Vac 190~250Vdc	81 ~ 217Vdc	1200W	95.0%	0.99	0.96	EBM-1K2S740MG

Notes: (1) Output current range with constant power at 1200W. (2) Certified input voltage range: 200-240Vac. (3) Measured at 100% load and 220Vac input (see below "General Specifications" for details). Product Description Fetaures: Ultra High Efficiency (Up to 96.0%) Compact Metal Case with Excellent Thermal Performance Full Power at Wide Output Current Range (Constant Power) Adjustable Output Current (AOC) with Programmability Isolated 0-10V/PWM/3-Timer-Modes Dimmable INV Digital Dimming, UART Based Communication Protocol Dim-to-Off with Standby Power ≤ 0.5 W Always-on Auxiliary Power: 12Vdc, 250mA Output Lumen Compensation End-of-Life Indicator Input Surge Protection: DM 6kV, CM 10kV All-Around Protection: IUVP, IOVP , OVP, SCP, OTP Low inrush current IP66 / IP67 5 Years Warranty
Descriptions: The EBM-1K2SxxxMG series is a 1200W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 176-305 Vac input with excellent power factor. Created for many lighting applications including high mast, sports, UV-LED, aquaculture and horticulture etc., this family provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V dimming as well as two-way communication via Digital Dimming, a UART based communication protocol. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature. Detailed Photos
