Shenzhen Pangda Can Develop High Precision CNC Surface Grinding Equipment Manufacturers

Product Description

Product Description

How it works:

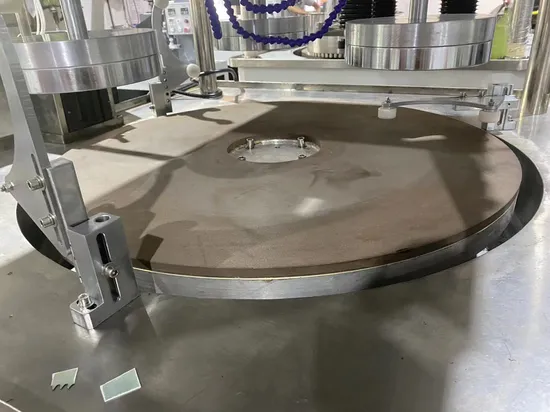

1. The grinding and polishing equipment is precision grinding and polishing equipment. The grinding and polishing materials are placed on the grinding disc, the grinding disc rotates against the clock, the correction wheel drives the workpiece to rotate, the pressurizing cylinder and the pressurizing block exert pressure on the workpiece, and the workpiece and the grinding disc make relative running friction to achieve the purpose of grinding and polishing.
2. Generally, the way of polishing disk is to use electroplating dressing wheel to shave, this way the shave is not ideal, through our dressing mechanism after shaving, flatness can reach ±0.002mm
Special points:
1. The pressure of the series grinding machine parts adopts the way of pressing the weight block and lifting the cylinder, and the pressure is adjustable;
2. Series grinding machine adopts PLC program control system, touch screen operation panel, grinding disk speed and timing can be directly input on the touch screen.

This grinding machine is suitable for high-precision single-plane grinding and polishing of large workpieces and mass production of small workpieces. Such as: aluminum alloy, stainless steel, light guide plate, ceramic, valve plate, diamond drill bit for oil drilling, etc. Product Parameters

Grinding disc size	Φ 910mmx Φ 250mm * 12mm
Work unit	3 groups
Maximum machining size	Φ 420mm
Pressurization method	Weight pressurization
Rest wheel specifications	Φ 420mmx Φ 370mmx50mm
Main motor power	2.2KW three-phase 380V
Power of disc repair machine	0.2KW three-phase 380V
Grinding disc speed	0-120RPM
Repair speed	0-120mm/minute
Processing flatness	0.002mm
Processing roughness	Ra: 0.02
Total working air pressure	0.4-0.6MPa
Total weight of equipment	1550KG
External dimensions LxWxH	1740x1300x2100mm

Company Profile

Shenzhen Ponda Grinding Technology Co., Ltd. Was founded in 2007, is located in the Gongming Shangcun Yuanshan Industrial Zone B, is a professional engaged in a variety of high precision grinding equipment, polishing equipment and supporting products and consumption of materials of high-tech enterprises. The company integrates research and development, design, manufacturing, sales and after-sales service. Its products are widely used in optical glass lenses, mobile phone parts, LED sapphire, molds, parts of various communication electronic products, flat metal parts and various hardware industries. Customer base throughout the country and Europe, the United States, Japan and other regions. Its representatives include Huawei, CLP Group; America's Apple, Japan's Dashin, Panasonic; Germany Botu; Taiwan Foxconn and many other well-known Chinese and foreign enterprises. Ponda heretofore supplied more than 60, 000 process solutions and appliances over the industries of machinery, electronic, aerospace, aviation, automotive, atomic energy, optics; The substances of metal, SiC wafer, ceramics, glass, industrial sapphire, plastics, and any other composites.
Packaging & Shipping
Certifications
FAQs
Q1: Which machine is most applicable for my product?
A: It usually depends on 5 requirements and parameters of your product: flatness, roughness, thickness, dimension, productivity:
1. If better flatness and roughness were required, you might need both lapping and polishing machine.
2. If to thin the product in a big margin, such as 500μm, you might need a thinner machine for extra.
3. If the productivity were excessive, you might need larger machine or to expand production line.
Additionally, we can confirm the production line as we make samples for you.
Q2: Does Ponda charge for making samples?
A: No, it's free to make samples.
Q3: Is Ponda trader or manufacturer?
A: We are manufacturer, certified National High-Tech Enterprise.
Q4: How long does it take machine to deliver?
A: Approximately 15 days to deliver. If the machine are out of stock, we need 15 days more to manufacture.
Q5: Does Ponda provide oversea setup and after-sale service?
A: Yes, we provide oversea service and online tutorial.
Q6: How many type of machine does Ponda manufacture?
A: We have 21 major series of machines, 5 different types run in different principles, more than 15 types of plates, 100 types of slurries.
