Solar Power Frequency Multifucntional Inverter

Product Description

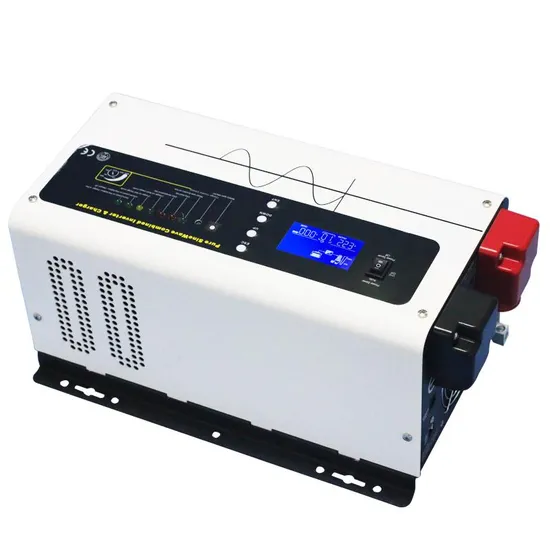

Introduction HC Series Pure Sine Wave Inverter Introducing the HC Series Pure Sine Wave Inverter from Ningbo Star The Force International Trade Co., Ltd. This multifunctional inverter combines a charger and automatic AC transfer switch, delivering a high conversion rate of up to 88%. With power factor correction, multi-stage charging, and pure sine wave output, it offers exceptional peak power to handle inductive loads safely. In the event of a mains AC power outage, the inverter's transfer relay seamlessly switches the load to its output, ensuring continuous power supply. When AC power is restored, the relay reconnects, smoothly transferring the load back to the mains AC.
Features
Ningbo Star The Force International Trade Co., Ltd. Pure Sine Wave Inverter Features: Four functions: mains bypass, mains charging, inverter UPS, automatic switching off 3-5% higher efficiency than ordinary power frequency series 30-50% reduced self-consumption Dip switch selection for battery undervoltage point, input AC range, energy-saving mode, priority mode Remote communication interface: RJ11/RJ45/RS232/485 remote control panel (optional) PC software monitoring support WIFI 4G module expansion for app cloud monitoring (optional) Pure sine wave output with isolated design AC four-stage charging mode with automatic current adjustment Compatible with commercial power, diesel engine power generation, and mixed power supply Can withstand 3 times rated power start with excellent load capacity LED display for working status, LCD remote display for operating parameters Protection features: undervoltage, overvoltage, short circuit, overload, over-temperature Suitable for renewable energy systems, utilities, RVs, marine, and emergency applications Parameters

MODEL(HC)	1kw	1.5kw	2kw	3kw		4kw		5KW	6KW
Continuous Output Power (W)	1000W	1500W	2000W	3000W		4000W		5000W	6000W
Rated input voltage	12VDC/24VDC/48VDC		12VDC/24VDC/48VDC			24VDC/48VDC
Mains mode specifications:
Input voltage waveform	Sine wave (mains or generator)
Rated input voltage	100V/ 110V/ 120V/220V/230V/240Vac
Low voltage shutdown point	92/ 184Vac:4%
Low pressure recovery point	97/ 194Vac :4%
High voltage shutdown point	127/253Vac:4%
High pressure recovery point	121/243Vac:4%
Maximum AC input voltage	135/270V rms
Rated input frequency	50Hz/ 60Hz (automatic detection)
Low voltage recovery point frequency	40.5+0.3Hz ;
Low voltage cut-off point frequency	40+0.3Hz;
High voltage recovery point frequency	69.5+0.3Hz;
High voltage cut-off point frequency	70+0.3Hz ;
Output voltage waveform	Consistent with the input voltage waveform
Overload protection	Circuit breaker start
Short circuit protection	Circuit breaker start
Power Efficiency	>95%
Conversion current	30A
Conversion time (Ac to Dc)	10ms
Bypass switching current	Yes
Bypass maximum load current	30A
Output voltage waveform	Sine wave
Power factor	0~1.0
Rated output voltage (V)	120/230Vac
Rated output frequency (Hz)	60/50Hz :0.3Hz
Automatic tracking main frequency (Hz)	Yes (from the first connection)
Output voltage range	:2% rms
efficient	>80%
Overload protection (SMPS load)	(110%<load<125%) :10%: disconnect the output voltage after 15 minutes (125%<load <150%) :10%: disconnect the output voltage after 10 seconds Load >150% :10%: Disconnect the output voltage after 20 seconds
Peak capacity( 10s)	3000VA	4500VA	6000VA	9000VA		1200VA		15000VA	18000VA
start the motor	1HP	1.5HP	2HP	3HP		4HP		5HP	6HP
Short circuit protection	Current limit (power off after 10s)
Circuit breaker size	15A		20A		30A			40A
Rated DC input voltage	12V / 24V/48V
Minimum DC terminal voltage	10V/20V/40V
Undervoltage warning	10.5Vdc :0.3Vdc (12V power supply)
DC input voltage is too low, automatic power off	10.0Vdc :0.3Vdc(12V power supply)
Input overvoltagewarning and power failure	16Vdc :0.3Vdc (12Vpower supply)
Input overvoltage recovery	15.5Vdc :0.3Vdc(12V power supply)
Power saving	load <=2W
Inverter dimensions	360*185* 180mm		420*185* 180mm			597* 195* 190mm
(Length*width*height)
Packing size (length*width*height)	520*315*305		580*315*305mm			760*325*310mm
Inverter weight	13.5KG	14KG	17KG	21KG		27KG		29.5KG	30.5KG
Packing operating weight	15.5KG	15.5KG	19KG	23.5KG		29.5KG		31.5KG	32.5KG
Standard warranty	2 years
