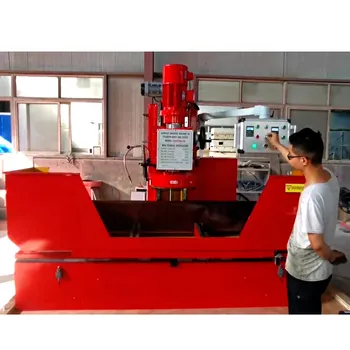

High Precision Full-Automatic Surface Cylinder Block Grinding Milling Machine for Cylinder Head Engine Long Service Life

Product Description

Products Description

Grinding machine is a kind of machine tool which uses grinding tools to grind the surface of workpiece. Most of the grinding machines use high-speed rotating grinding wheel for grinding, and a few use oilstone, abrasive belt and other grinding tools and free abrasives for processing, such as honing machine, superfinishing machine, abrasive belt grinder, grinder and polishing machine.
Characteristic



Grinding machine can process high hardness materials, such as hardened steel, cemented carbide, etc; Can also process brittle materials, such as glass, granite. The grinder can be used for grinding with high precision and small surface roughness, and also for grinding with high efficiency, such as power grinding
1. Generally, the rotation of grinding wheel does not require speed regulation, but can be driven by a three-phase asynchronous motor, and only requires one-way rotation. When the capacity is large, Y-triangle step-down start can be used. 2. In order to ensure the machining accuracy, make it run smoothly, and ensure the small inertia and no impact when the worktable reciprocates, the hydraulic transmission is used to realize the reciprocating motion of the worktable and the transverse feed of the grinding wheel box.



Specifcation

Model	Unit	3M9735A*100	3M9735A*130	3M9735B*130	3M9735B*150
Max length of processing	mm	1000	1300	1300	1500
Max width of processing	mm	350	350	350	350
Max height of processing	mm	600	600	700	800
The vertical moving distance of grinding wheel plate	mm	120	120	60	60
The vertical moving distance of grinding wheel head	mm	0	0	800	800
Moving speed of working table	mm/min	40-900	40-900	40-900	40-900
dimensions of working table	mm	1000*500	1300*500		1500*500

support	1pcs	Set them on working table
Emery tile disk	1 set	Fixing on main shaft of the machine
Emery tile	8pcs	Set them on the emery tile disc
Milling cutter	1 pec	Loading in accessory box
Balance weight	1 pec	Loading in accessory box
Bushing spanner 38x38	1 pec	Loading in accessory box
jaming block	10 pcs	Set them on the emery tile disc
pressure plate , screw	4 pcs	Loading in accessory box
Cooling box and pipe	1set	Fix it on base
diamond dresser	1set	Loading in accessory box
Operation manual	1 copy	Loading in accessory box
Packing list	1 copy	Loading in accessory box
certificate	1 copy	Loading in accessory box

Name	Quantity	Remarks
Emery tile	8pec	Loading in accessory box
Balancing axis	1pec	Loading in accessory box
Balancing frame	1set	Fix it on base
Diamond correction pen	1pcs	Loading in accessory box
Milling cutter	1pec	Loading in accessory box
