CNC H Beam Channel Steel Beveling Cutting Machine

Product Description

CNC H Beam Channel Steel Beveling Cutting Machine
MACHINE APPLICATION

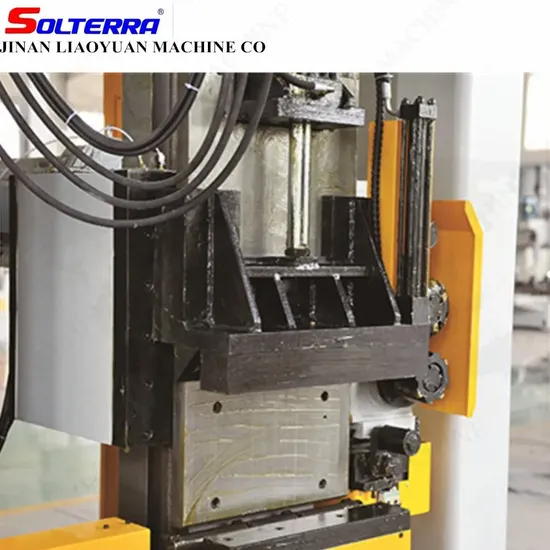

PRODUCT DESCRIPTION: 1. The machine is mainly composed of Longitudinal and transverse slipway, milling head, Milling columns, stopper-mechanism, rollerway, hydraulic system, electrical system.etc
2.The machine body is welded between square steel tube and steel plate with a framework structure. The cnc cutting machine possesses strong rigidity and strong processing power. High precision and high stability be realized.
3. Every spindle box includes three mills, bevel the arcnotch, end-surface and web of H-beam in once feeding to finish all processing. Adopted indexable carbide milling head, high grade milling head ensured the efficiency of the machine; every milling head can be use many times through adjusting the position of the edge, the customer can save the cost.
4. Adopted touching screen input as human-computer interface, English or Chinese operation, simple processing data, the operator can operate easily.
5. Six CNC milling spindles.



TECHNICAL PARAMETERS

TECHNICAL INFORMATION:

Model		BM38/6
Dimensions for H-beams	Web height(mm)	220-1000
	Flange edge width(mm)	100-600
	Flange thickness(mm)	10-38
	End-incline(mm)	≤300
	Workpiece length(mm)	≥400
Milling unit with three spindles	Quantity	2
	Rotation speed of spindles(r/min)	400
	(Unit)Head quantiy	6
	Motor power of spindles(kW)	2×7.5
	Up/down speed(frequency conversion,CNC)(mm/min)	50-500
	Motor power for up and down(kW)	2×1.5
Control mode		PLC
Total power(kW)		(Approx.)38
Overall dimensions(L×W×H)(mm)		7300×2900×2000
Machine weight(kg)		5000(Appr.)

PACKAGES AND DELIVERY

LIAOYUAN CO' SERVICE
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine,
* 24 Hours on services Phone, email and in person support training how to use the machine.
* View our Factory. * Stay in touch with the customers even after
* Electrical & mechanical technical support the deal. never ignore their calls.
* Parts ordering * Engineers available to service machinery
overseas.
LIAOYUAN COMPANY PROFILE
JINAN LIAOYUAN MACHINE COMPANY INFORMATION
Jinan Liaoyuan Machine Co is located in Jinan, Shandong province of China. Our company is a one of the world leader Manufacturers in CNC machine tools. Jinan Liaoyuan has focused on top quality CNC machine products for over 20 years in China. We started as a small operation, but now have become one of the leading suppliers in the CNC machine industry in Shandong. We are a manufacturer and trader specialized in the research, development and production of all kinds of CNC machine, such as: CNC Angle Steel Punching machine, CNC Angle Steel drilling machine, CNC Plate Drilling Cutting machine, CNC Beam Drlling Marking Beveling machine, CNC Band Saw Cutting Machine and all kinds of CNC machine center and so on. Jinan Liaoyuan Machine provide turkey solution and perfect service to satisfy your production needs.
JINAN LIAOYUAN CNC HISTORY * Founding period (1991-2008)
* Continuous growth (2008-2013)
* Innovation expansion (2013-2017)
* JINAN LIAOYUAN MACHINE today

The machines manufactured by JINAN LIAOYUAN are being used in the fields from steel structure to angle towers, metal construction, pipe, pressure vessels, ship construction, bridge construction, wind-energy, heat exchanger industry fields, and they are also offered for usage in many other different fields.
