2000BPH liquid rinsing filling and capping bottling machine for beverage water bottle production line

Product Description

Product Description

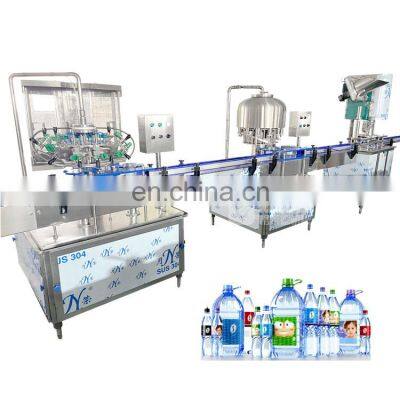

Product DescriptionXGF12-12-1 linear type manual PET water bottle washing filling capping machine production plantThe monobloc beverage washer filler capper machine is composed of QS washer, CG filler, FG capper connected by linear type conveyor system with driven motor, it is suitable for clients who just want to start small business or no need high speed production line. If you want to produce different bottles with different necks, height and diameters, we can produce change parts for you. Change parts for you with extra cost will be paid. 1. Rinser-washer bottle clamp 2. Filler -bottle boday clamp gasket 3. Filler- star wheel for small and bigger bottle Capper- star wheel, dia wheel, transition plate capping head, cap passing way channel 12pcs Washing Machine Rotary bottle washer • The empty bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. • The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance. Technical DatasWashing Heads 12pcs Capacity 2000-3000BPH ( rinsing time of each bottle is 4S)Power 0.75KWDimension 1050*950*1700mmWeight650KGSApplicable bottle Dφ: 50-100mm , H: 50-350mm 12pcs Filling Machine Normal pressure filler • This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling non carbonated drink. It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated accurately. The filler is the ideal choice for drink factories of small and middle size. • The bottles will be taken into filler by conveyor, the dia plate will turn each bottle to be caught by holding clap, with driven energy of motor, the holding claps will go up and down as main axis, when clap hold bottle, it will go up to press bottle mouth closely to filling head, at the meantime, filling value open and start to fill, when the bottle mouth leave the filling head, filling stop. • The whole machine is made of SUS304. The filling head is spring type without dead angel, no dripping. Easy for clean and maintenance. The holding clap model is suitable for all bottles with same bottle neck, it is easy for change bottle shape and volumes. Technical Datas Filling Heads 12pcs Power 1.1KWDimension 1100*1050*1850mmWeight800KGS Single Head Capping Machine Screw cap capping machine• The capping machine is used for capping for plastic screw caps, it includes auto cap loader and capping system 2 parts. Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. When capping head catch cap, it will go down to bottle mouth and finish capping. • The capping head is by Italian magnetic technique, it will protect caps not to be destroyed. The capping correctness will be 99%. The opposite caps will be deleted automatically. The capping head is an separate part. Change cap is only need to change capping head, easy for change and operation.• The whole machine is made from SUS304, long shelf time. Technical Parameters Capping head 1pcs Power 1.1KWDimension 1000*850*2000mmWeight 600KGS What Grandee Machinery Can Do More For You ? Grandee Machinery is your trustworthy supplierRelated productRO System This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. Blowing Machine with different options 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Semi automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Semi automatic PE film shrink packing machine Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company informationOur exhibition Project casesOur teamFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare parts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
