4 Pin Wiring Diagram Cbb61 Fan Capacitor 10UF Cbb61 Capacitor 450VAC 50 60Hz

Product Description

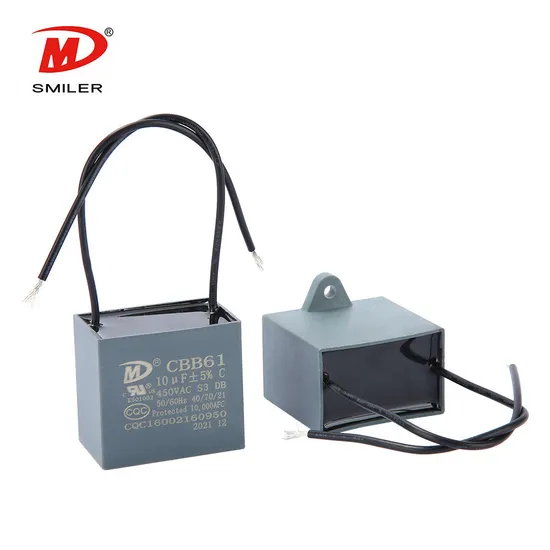

13 years professional capacitor manufacturer SMiLER owns product certification in CQC,VDE,UL,CUL,TUV,CE,CB and so on,we have more than 20 patents. PRODUCT PICTURES
PRODUCT PARAMETERS

Model Number:	CBB61 with wires
Type	Polypropylene film capacitor
Safety approvals:	CQC/UL/VDE/TUV/CE
Approval standard	GB/T3667,UL810,EN60252-1
Climatic category	25/70/21,25/85/21
Rated voltage	250VAC~500VAC(50-60Hz)
Capacitance range	0.1uf~35uf
Capacitance tolerance	+_5%(J),+_10%(K)
Testing voltage:
Between terminals	2*Un(VAC)/3s(CQC,VDE,TUV),1.5*Un(VAC)/3s(UL)
Between terminals and case	2*Un+1000(VAC)/3s(>=2000VAC)
Insulation Resistance(20)	between terminals and case>=5000/C(100VDC,3s)
Tangent of loss angle(20)	<=0.002(1KHz)
Fault Currency	S0/S3
Place of Origin	CHINA
Packing	More pieces in one inner box or polybag as customer request.
Color	accept customization
Supplier type	OEM factory

CAPACITY AND SIZING

Capacitance(uf)	250V	300V	400V	450V	500V
	L/W/H	L/W/H	L/W/H	L/W/H	L/W/H
0.8UF	32*10*20	32*10*20	32*10*20	32*11*22	36*11*22
1.0UF	32*10*20	32*11*22	32*11*22	36*10*20	36*13*23
1.2UF	32*10*20	32*11*22	36*10*20	36*11*22	37*13*24
1.5UF	36*10*20	36*11*22	36*11*22	37*13*24	37*15*27
2.5UF	36*10*20	36*13*23	36*13*23	38*15*25	38*17*28
3.0UF	36*11*22	37*13*24	38*15*25	38*17*28	38*19*31
3.5UF	36*11*22	38*15*25	38*17*28	38*18*29	47*19*31
4.0UF	36*13*23	37*15*27	38*17*28	38*19*31	47*19*33
5.0UF	37*13*24	38*17*28	47*17*28	47*19*33	47*25*35
6.0UF	38*15*25	38*18*29	48*19*31	47*20*35	47*27*37
8.0UF	38*17*28	47*17*31	47*20*35	47*25*35	47*30*43

ADVANTAGES OF THE PRODUCT The products are made of electrical class polypropyne film, zinc-aluminum metallized electrode,dry fabric,aluminum shell,and enveloped with epoxy resin.They have the characteristics of high cost performance,high perssure-resistant,long life and soon. MAIN APPLICATIONS Fan motor,exhaust fan motor,air conditioning fan,lampblack machinfe,bread machine,bread machine and so on many household appliances. Recommend Products Recommended by seller view more >> Compare with others Automated factory direct sales Capacitor broker Stable supply Unstable supply COMPANY PROFILE 13 Years Foctory Certified by SGS We have exhibited in the Indonesia International Electronics and Smart Application EXPO. We run at least 5 times of uality inspections before shipping CAPACITOR EXPORT,WE ARE PROFESSIONAL
FAQ 1. Which style of capacitor lead out do you available?
The lead out of capacitor we available is Wires, pin, insert and terminal.
The terminals are divided into 187# (width 4.8mm) and 250# (width 6.3mm).
At the same time we accept the customization.
2. Which style Installation hanger of capacitor do you have?
We own the Installation hanger styles which in the market selling. The detail please reference follow pictures.
At the same time we accept the customization. 3. What color plastic shell do you have?
The general color is black, white and blue etc.
At the same time we accept the customization.
4. Which certificate do you have?
From the company, we own near 15 honour certificates from the government and our customers. The main certificate is the high -tech
enterprises which pass the audit of the government. At the same time, we own near 20 patent certificates of the production and
products.From the products,We own near 20 certificates which such as CQC, TUV, UL VDE and so on.
5. What are the main parameters of the capacitor?
There main parameter with Capacity and voltage.
6. The unit of capacitor capacity is F (Farad).
The conversion formula of F (Farad) is:
1F(Farad)=1000000μF(Micro method)
1μF (micro method)=1000000pF (picofarad)
The amount of F is very large, generally μF and pF are used as the unit of capacitance.
7. What does CBB mean?
CBB is China's abbreviation for metallized polypropylene film capacitors.
8. The words PO and P2 in capacitor for what meaning?
P0 in the capacitor means non-explosion-proof, and P2 means explosion-proof. The explosion-proof principle of safety film
capacitors. The metalized electrode adopts a micro-fuse network structure (as shown in Figure 1). When the capacitor fails,
themicro-fuse is disconnected and the power supply is automatically cut off, thereby preventing the expansion of the fault and
achieving the purpose of self-safety protection. ABOUT US SMiLer Electronic Industrial Co., Ltd. A professional manufacturer of film capacitor. Our capacitor mainly use for motor, fan,washing machine, air conditioner, water pump etc. We established in 2009 and located in Shunde where is know as the hometown of electric appliance in china. SMiLer had nearly 100 empolyees now. Including R&D team, quality management team and production team and sale team, more than 30 professional and skillful technical personnel. SMiLer whole area is 5000 square meters with Electric cutting rolled film machines, element winding machine in New air - conditioning plant, closed shop. and clean advanced vacuum packing machine. The Automatic Production Line in assemble and welding production take us with high quality and cut down the production cost for the capacitor. The maximum production capacity is 300000 pcs per day. And the storage capacity is 3000,000pcs. SMiLer own product certification in CQC,VDE,UL,CUL,TUV,CE,CB and so on. We have more than 20 patents. Every key raw material from the excellent suppliers of china and overseas which can ensure the product quality from the source. SMiLer own advanced performance & endurance laboratories, Durability test machine working 24 hours. The sales area covers China, Europe, America,Southeast Asia, The middle east etc. Welcome the visit of domestic and foreign customers. Motor capacitor, Right choose by SMiLer.
