Fully Automatic Edge Cutting Machine/Bridge Cutting Machine/Bridge Saw

Product Description

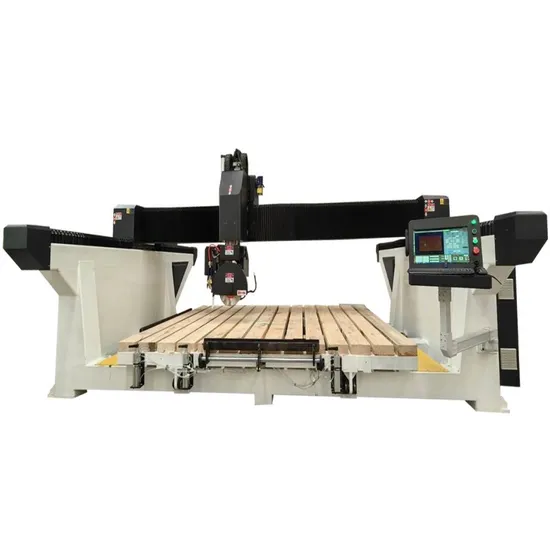

CNC Automatic 4 Axis / 5 Axis Stone Bridge Saw
Bridge saw stone cutting machine description
(1) It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation.
(2) This bridge saw uses a high-precision reducer, ensuring better rotating precision of the cutting head.
(3) It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it's easy to learn the software to make designs.
(4) The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.
(5) This bridge saw is ideal for cutting slabs of quartz, marble, granite and stone.

>>>Technical Parameters

Model	GD-3220 5 Axis Bridge saw stone cutting machine
Working area (X*Y)	3200x2000mm
Voltage	380V,3 phase,50hz
Spindle motor power	11kw
Saw blade diameter	350-450mm with A axis support bevel 45 degree cutting
Control system	China brand professional bridge saw cutting system
Rotate of working platform	0-80°
A axis	0-45°
Max cutting thickness	80mm
Motors	Dongling 1500w servo motors and drivers
Guide rail	Imported high precision 30mm guide rail transmission
Reducer	Japan Shimpo high precision reducer
Racks	Taiwan YYC
Laser infrared probe	Install a laser infrared probe to show the cutting path.
Lubrication system	Automatic
Machine dimension	5820*3450*2300mm
Warranty	2 Years warranty, lifelong after-sale service

>>>Show details

PLC control, easy to operate, accurate, and stable. Cutting head can be tilted 45 ° for oblique cutting
Install a laser infrared probe to show the cutting path. Heavy duty machine body to ensure machine more stable, with long working time.
>>>Applications

Bridge saw stone cutting machine application:
This is a newly designed 5 axis CNC bridge saw for stone cutting. It is added a laser infrared probe, showing the cutting path. And the machine head can swing freely at 360°, which can cut and edge at any angle and shape for granite, marble, artificial stone, slate and other stone materials. It is widely used in slate application industry, prefabricated building industry, home decoration industry, etc.
>>>Our company
Samet Intelligent Manufacturing Co., Ltd.
SAMET has been deeply engaged in the manufacturing of laser intelligent equipment for 11 years. It is headquartered inJINAN, China .It is a national high-tech enterprise focusing on laser application solutions such as laser cutting, tube cutting, precision cutting, laser welding, laser marking, CNC bending, and automation equipment.
SAMET has established branches and service outlets in 30% of the countries and regions around the world to promote the process of global intelligence and has more than 200 patents and certificates. SAMET adheres to the quality route and forms 139 production and inspection procedures higher than the industry standard. With the mission of "Laser technology makes a better world", its high-quality products and after-sales service have won high praise from customers.

>>>FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need SAMET technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.

Q:Why the machine price not include fiber source and tube parts ?
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .
