Plastic Injection Molding Machinery for Plastic Crate Box

Plastic Injection Molding Machinery for Plastic Crate Box

US$75,000.00-80,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-600T IV
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
653/732/816/904cm³/Sec
Weight
26900kg
Motor Power
52kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
9.8*2.2*3.0m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

High Speed Plastic Tableware Disposable Knife Fork Spoon Injection Molding Machine
Product Parameters

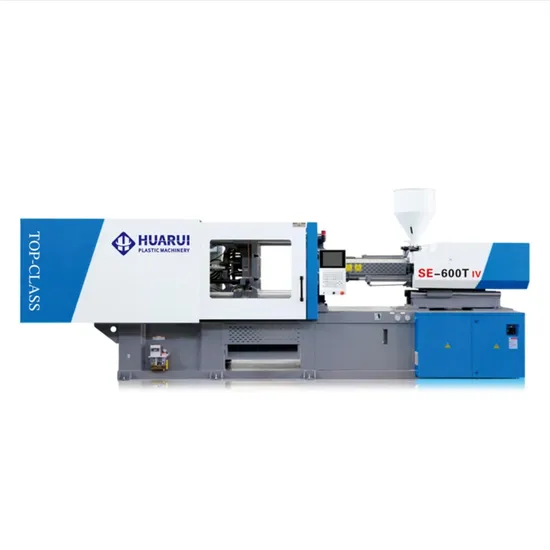

SE-600T IV Plastic Injection Molding Machine Information
Item Unit A B C D
Screw diameter mm 85 90 95 100
Theoretical shot volume cm³ 2554 2863 3190 3534
Shot weight (PS) g 2324 2605 2903 3216
Shot weight (PS) oz 82 91.9 102.4 113.4
Length/Diameter ratio L/D 23.3 22 20.8 19.8
Injection pressure Bar 1909 1700 1530 1380
Injection rate cm³/sec 653 732 816 904
Max.screw speed rpm 140
Clamping force KN 6000
Max.daylight mm 1350*1300
Open stroke mm 900
Space Between Tie-bars mm 920*870
Min mould dimension mm 400
Mould thickness range mm 920
Ejector force KN 160
Ejector stroke mm 230
No.of ejector pins unit 17
Max.motor power KW 36+36
System pressure MPa 175
Heater input power KW 52
Oil filling capacity L 700
Machine size M 9.8*2.2*3.0
Net weight KG 26900

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
