Safe Photocell Sensor for Gate

Product Description

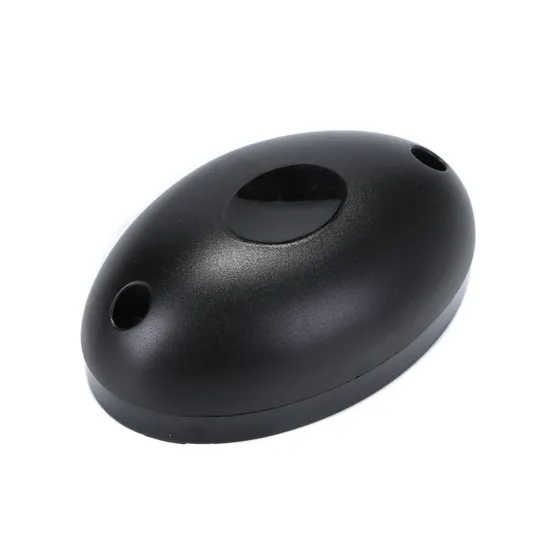

Safe Photocell Sensor for Gate
Product Introduction
Single beam active intruder infrared detector with built-in AGC control circuit. Can effectively prevent sunlight. Beautiful structure. small size,easy to install, Totally-sealed rainproof and moth-proof design. Can be widely used for access control system,parking lot.defence wall, door and window, balcony,garage,passage and other places.
Technical Parameters

Power supply	DC 10.5V~24V/0.5A
Maximum current	TX:1 5maMAX RX:30maMAX
Optical source	Infrared Pulse
Infrared Wave length	940nm
Infrared transmission frequency	1. 92KHz
Response speed	50ms
Alarm output time	≥1 Second
Detection mode	Block off the infrared beam
Infrared distance	≤20m
Relay contact capacity	AC,DC30V,0.5Amax
Working environment	Temperature:- 25C~ +55C Humidity:RH 95%
Product dimension	76x48.2x30(mm)

Installation Instructions1. The optimal installation height should be higher than 20m.
2. The product should be vertical when install and make sure the transmitter and receiver be at the same level.
3. LED3&LED4 are power indicator lamps. LED1 is alarm indicator lamp, LED2 is signal strength indicator lamp( LED2 IOTE on indicates adjustment is complete)
Note:Since the transmitting power of this product is large, the signal will be very strong if the transmitter is too close with the receiver,so please make the distance at least 1 meter between the transmitter and receiver,then try again.
4. When the installation distance is very close,remove the spectral lens to enhance the sensitivity.
Product Feature1. When the gate is closing, the gate will open immediately when the sensor works to protect people.
2. Easy to install it on the gate or wall.
3. One receiver and one transmitter in the package, you can prepare the wires by yourself.
4. Photocell sensor gate is compatible with all kinds of sliding gate openers.
