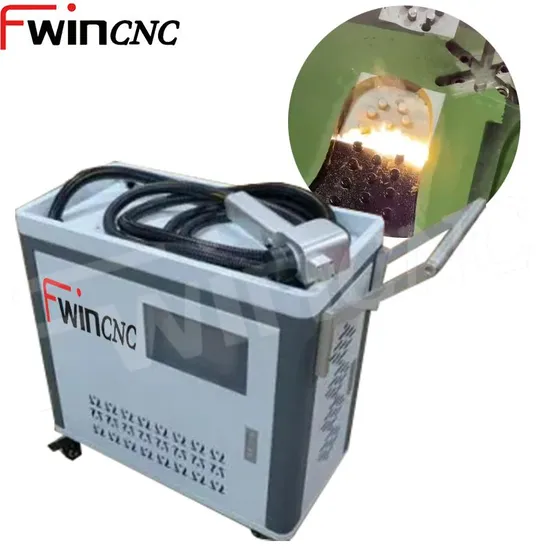

Fwincnc Pulse Fiber Laser Cleaning Machine Rust Remover Portable Laser Cleaner

Product Description

Product Description
Pulse laser cleaning machine is a device that uses pulse laser technology for surface cleaning. It instantly irradiates the surface of the workpiece with a high-energy pulse laser beam, causing impurities such as dirt and oxide layers to expand and fall off due to heat, achieving efficient cleaning. Pulse laser cleaning machine has the characteristics of no need to use chemical solvents, no need to contact the object surface, and the cleaning process is environmentally friendly and pollution-free. It is suitable for cleaning metal, ceramics, rubber and other materials, and is widely used in automobile manufacturing, aerospace and other fields.
Product Features
1.The chassis is equipped with a strap buckle, the strap can be carried on the shoulder, and the hands are freed2.External battery, strong mobility;3.Hand-held cleaning, exclusive mini laser head, durable and not tired, flexible and convenient;4.Excellent data, some parameters are stronger than 200W,air-cooled laser cleaning machine, high cleaning efficiency;5.The system is stable, easy to control, and has a service life up to 50,000 hours, which is cost-effective;6.High cleaning precision, nano-level controllable, no damage to the substrate;7.Green and environmental protection, no secondary pollution;

Machine Model	AW-100W	AW-200W	AW-300W
Laser Power	100W	200W	300W
Laser Wavelength	1064-1080nm	1064-1080nm	1064-1080nm
Pulse Width	0.1-20ms	0.1-20ms	0.1-20ms
Fiber Length	4.5M	4.5M	4.5M
Laser Pulse Frequency	1-20HZ	1-20HZ	1-20HZ
Adjusted spot range	0.1-3mm	0.1-3mm	0.1-3mm
Working Voltage	1PHRASE 220V ±10%	1PHRASE 220V ±10%	3PHRASE 380V ±10%
Minimum Welding pool	0.1mm	0.1mm	0.1mm
Cooling System	Aircooling	Aircooling	Aircooling

Product Application
Laser cleaning machine can remove object surface resin, paint, oil stains, dirt, rust, coating, coating and oxidation layer, and the industry is widely used, covering ships, auto repair, rubber mold, high-end machine tools, tracks and environmental protection.
Detailed Photos

New generation cleaning head:
The weight is light, the body engineering design method is adopted, and the grip is comfortable. Its net weight is 0.7 kg.


Raycus Laser Source
It has higher photoelectric convers- ion effciency, better and more stable beam quality, and stronger anti-high-reflection ability. At the same time, it introduces an optimized second-generation optical fiber transmiss-
ion system to ensure a more stable and precise cutting effect in thick plate cutting.
Display screen:
The display screen is embedded in the side of the machine so there is no need to worry about the screen being scratched and thisdesign also saves space.
Cleaning modes:
7 cleaning modes: Linear mode, rectangular mode, circular mode, sinusoidal mode, double helix mode, free mode, circular mode. Different modes suitable for working on different materials with different cleaning requirements.
Laser Clean Case
WHY LASER CLEANING?
Incorporate our advanced laser cleaning solutions and embrace the future of sustainable production processes. By dong so, you can effectively minimize quality issues and enhance productivity, all while reducing your resorce footprint. Let's collaborate in creating a cleaner and more efficient production environment together.
Removal of oils, resins, glues, dust, stains, and production residues. Roughening of metal surfaces.1: Paint removal, rust removal, and oil stain removal before welding or bonding; treatment of oxides and residues after welding.2: Paint removal, rust removal, and oil stain removal before welding or bonding;treatment of oxides and residues after welding.3: Mold cleaning, such as tire molds, electronic molds, and food molds.Removal of oil stains after precision component production and processing.4: Treatment of oxides, paint removal, and rust removal during the production or maintenance of aerospace weapons, ships.5: Cleaning of metal surfaces in narrow spaces.Cleaning of cultural relics, rocks, and exterior surfaces of buildings.6: Cleaning of mechanical parts, cleaning of pipes and fittings, cleaning of automobile parts, cleaning of old paint on aircraft, etc.
