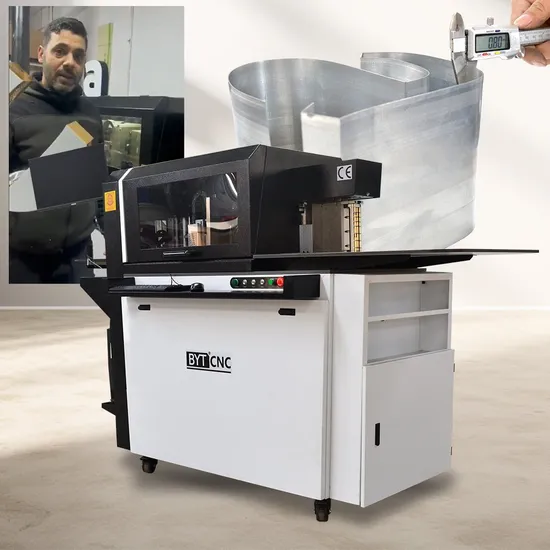

Bytcnc RGB Infinity Advertising Signs Channel Letter Bending Machine for Infinity Letters Display

Product Description

Product Description
1. Quality Guarantee Whole machine guarantee 2 years, the motor guarantee 3 years. 2.Processing material Width: 10-160mm, Thickness : Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm
3.Machining parts 1 All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant,especially suitable for coastal areas. 4.Machining parts 2 In the overall structure the working platform use 14mm whole plate deal with three times plain grinding finish ,
the internal workpiece thickness 17mm,ensures the long-term working stability and accuracy
5.Length closed-loop control system The software have Length closed-loop control system,the length precision ≤0.1mm. Meantime Independent development software system, which can updated according customer need
and more easy to use .
6.voltage digital display device The motor and driver use the transformer with voltage digital display device to replace switching power,monitor the voltage situation and remind customer to do the corresponding treatment when the voltage is unstable . 7.Whole machine weight meet 530kgs and more stable. Feeding 1.The feeding roller diameter 45mm and install encoder, the precision and speed is similar as manipulator . 2.Install return material control device which ensure the returned material precision. 3. The guide roll diameter 60mm and ensure the material more straight when feeding.
Aluminum notching 1.Aluminum cutting use 20mm Taiwan PDF guide rail ,the knife 75mm , guarantee the smooth cutting with\
fast rotating speed and small cutting angle. 2.Cutting mode use motor lifting control,more stable ,not easy damage material and noise small. 3.Use four-column design ensure the cutting stable and effect.
Stainless steel Notching 1.Planer have current induction automatic knife adjustment, very easy finish cutting depth through software ,
more precision than manual adjust. 2. Double Japan Fuji Servo motor and driver for cutting and bending , 20mm leading screw, more fast ,
stable and high precision . One set bender can service 6sets laser welding working. 3.The Planner cutter use carbide blade, each blade have 8 sides ,every side can working about 7000 times,the use cost is very lower and cutting effect is beautiful . Product Parameters

Model	BWZ-C1
Function	Automatic feeding, slotting and bending
Applicable Material	Stainless Steel, Aluminum
	, Galvanized,Iron, Channelume
Material Width(mm)	SS:≤160 Flat Alu:≤160
SS=Stainless steel	Fold Alu≤130 Channelume:70,90,110
Alu=Aluminum
Material Thickness	SS :0.3~1.2mm Alu:0.3~1.5mm
Bending Radius	7mm
Feeding	φ45mm Feeding wheel +Guide Material +Encoder+Exit control device
SS slot Motor	Japan Fuji servo motor
Slotting	Motor control
Bending	Coupled-Double copper shaft flat arc bender+Stainless steel arc bender
Control System	ADT bender
Power	<2000W
Air Pressure	0.6MPa
File Format	Dxf, Ai, Plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	500
Overall Size(mm)(L*W*H)	2680*880*1590

After Sales Service Company Experience
1.Founded in 1996, with registered trademarks "BAOYUANTONG" and "BYT".
2.Own more than 30 patents for invention, utility model and design.
3.Passed the "SGS certification" for 9 consecutive years, and all products have obtained the " Europe CE certification"
4.Exported to over 150 countries including the North America, Europe, South America, the Middle East,and have more than 2000 clients.
5.Provide one-stop procurement ,let customer's purchase more efficient and safety.
6.According the customer different requirements ,provide equipment customized solved plan and sample making .
Sales Service
1.Technical people have professional english ability and directly with customer communication.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.

FAQ
1. What is Channel letter bending machine?
Introduction of the machine: mainly produces metal 3D letters and light boxes
2. How to choose a suitable Letter bending machine?
1) According to local needs,which letters are more popular, aluminum alloy or stainless steel letters.
2) If the budget is less than 5000$, then you can choose aluminum letter bending machine
More than 5000$, consider multifunctional one
3. What are the functions of the Letter bending machine?
It with automatic feeding, slotting, and bending functions, high precision and save labor cost
4. What are the functions of the Letter bending machine?
Together with the machine ,there is detail english install and operate manual &&video, meantime before you get this machine ,our service engineer will contact with you in advance, all questions you can contact with them in anytime.
5.What is the type of shipping and producing time ?
We offer EXW,FOB ,CIF ,DDU and DDP which you can choose as you like .
When you pay for the deposit , We will arrange producing which about 7-15days delivery .
