D Cut Non-Woven Fabric Bag Making Machine Ultrasonic Non Woven Bag Making Machine Price
| US$22,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KTNW-A600, KTNW-A700
Voltage
220V
Seals Mode
Ultrasonic Sealing
Speed
High
Continuous-Rolled
Yes
Sealing & Cutting
Heat-Sealing Cold-Cutting
Layer
Single
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Non-Woven Bag Making Machine
Use
Make Non Woven D Cut Bag, U Cut Bag, W Cut Bag
D Cut Bag Making
Yes
Unwind with Auto Loading
Yes
with Auto Length Control System
Yes
Auto Photo Senor Checking System
Yes
Auto Banana Handle Punch System
Yes
Servo Motor Drive System
Optional
Auto T-Shirt Bag Puncher
Optional
Keyword
Non-Woven Fabric Bag Making Machine
Keyword 1
Ultrasonic Non Woven Bag Making Machine Price
Keyword 2
D Cut Nonwoven Bag Making Machine
Keyword 3
Non Woven Bag Making Machine C700
Keyword 4
Ultrasonic Non Woven Fabric Bag Making Machine
Transport Package
Wooden Box Packaging Non Woven Bag Making Machine
Specification
9000 x 2400 x 2100mm
Trademark
KETE
Origin
China
Production Capacity
20set/Month
Product Description

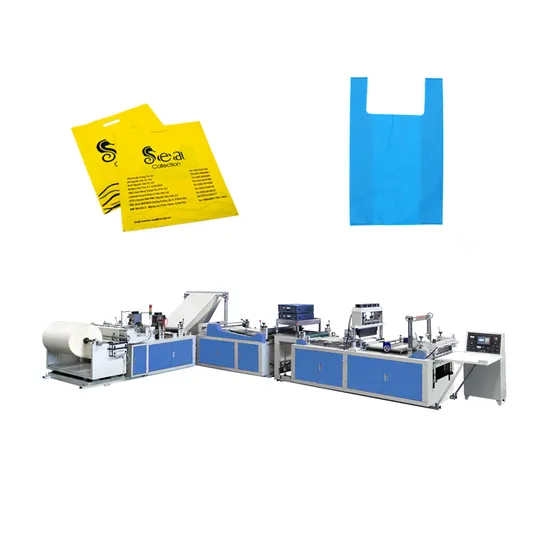

This Non Woven Bag Machine Is Suitable To Use Roll-Type Non Woven Fabrics To Make Die Cut Bags Fully Automatic. Ω. With PLC touch Screen Control System Ω. With Ultrasonic Sealing System Ω. Material Feeding Control by Step Motor Ω. Unwind with Auto Loading and EPC System Ω. With Auto Length Control System Ω. With Automatic Counting System Ω. With Auto Temperature Control System Ω. With Auto Photo Senor Checking System Ω. D Cut Bag with Auto Banana Handle Punch System Ω. Optional: Servo Motor Drive System Ω. Optional: Auto T-Shirt Bag Puncher
| Model | KTNW-A600 | KTNW-A700 |
| Raw Material | PP or RPET Non Woven Fabric | |
| inished Bag | D Cutting Bag | |
| Max. Raw Material Width | 1250mm | 1450mm |
| Max. Raw Material Diameter | 800mm | 800mm |
| Material Thickness | 30-120gsm | 30-120gsm |
| Bag Making Speed | 20-120pcs/min | 20-100pcs/min |
| D-cut Bag Width | 100-800mm | 100-800mm |
| D-cut Bag Height | 200-580mm | 200-680mm |
| D-cut Bag Top Gusset | 40-80mm | 40-80mm |
| D-cut Bag Bottom Gusset | 100-200mm | 100-200mm |
| D cut Bag Hole Size | 20x80mm | 20x80mm |
| Total Power | 10kw | 12kw |
| Machine Weight | 3000kg | 3500kg |
| Machine Voltage | 220v / 380v | 220v / 380v |
| Machine Size (LWH) | 8500 x 2200 x 2100mm | 9000 x 2400 x 2100mm |
