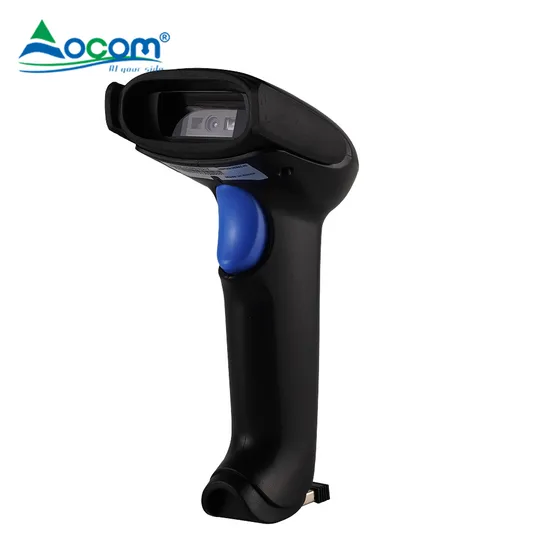

2D Barcode Scanner Long Range Qr Code Scanner Reader Inventory Wireless Barcode Scanner
Basic Info.
Model NO.
OCBS-W217
Kind
Manual,Continuous Scanning,Auto-Sensing
Scan Speed
400 Scans/Sec
Scanning Light Source
LED
Usage
Barcode Scanner
Network Scanning
Support Network
Interface Type
USB
Scanning Element
CMOS
Optical Resolution
N/a
Application
Commercial Application
Model
Ocbs-W217
Color
Black
Material
ABS+PC
IP Grade
IP42
Processor
32-Bit Arm MCU + DSP
Wireless
100 Meters 2.4G Wireless
Power Supply
DC 5V ±5%
Battery
1200mAh
Power Consumption
375MW(Working);226MW(Standy);750MW(Max)
Prompt Mode
Buzzer, Indicator(LED)
Trigger Mode
Manual,Continuous Scanning,Auto-Sensing
Memory
16MB
Working Time
12 Hours
Charging Time
4 Hours
ESD Protection
15kv Air Discharge
Transport Package
Carton
Specification
48.5*44.5*24/20pcs
Trademark
OCOM/OEM/NEUTRAL
Origin
Shen Zhen, China
Production Capacity
50000 PCS/Year
Product Description
2d Handheld Wireless Wired Barcode Scanner with 2.4GHz WiFi (M/N:OCBS-W217) Features: High performance imaging technology Omni-directional scanning 4 mil excellent scanning accuracy 2.4G wireless and USB transfer data 1200mAh lithium battery can work for 12hours 16MB big storage can save 100000 bar codes Multi special function setting supported High compatibility for all major 1D and 2D symbols Can read the bar code on the screen and color bar code| General | |
| Model | OCBS-W217 |
| Color | Black |
| Material | ABS+PC |
| IP grade | IP42 |
| Processor | 32-bit ARM MCU + DSP |
| Wireless | 100 meters 2.4G wireless |
| Power supply | DC 5V ±5% |
| Interface | USB |
| Battery | 1200mAh |
| Power consumption | 375mW(Working);226mW(standy);750mW(Max) |
| Prompt mode | Buzzer, indicator(LED) |
| Trigger mode | Manual,Continuous scanning,Auto-sensing |
| Memory | 16MB |
| Working time | 12 hours |
| Charging time | 4 hours |
| ESD Protection | 15KV air discharge |
| Shock resistance | 1.5m free fall on concrete surface |
| System Supported | Linux,Android,Windows XP,7,8,10,MAC |
| Performance | |
| Sensor | CMOS sensor |
| Light source | Red LED(Aiming)+White LED(Lighting) |
| Reading Mode | Image |
| Print contrast | ≥25% |
| Resolution | ≥4mil(PCS90%,CODE 39) |
| Movement tolerance | 25cm/s |
| Scanning Angel | Roll360°,Pitch30°,Yaw45° |
| Scanning Depth | Code39 4.17mil(15 bytes): 4cm-8cm Code128 4.17mil(16 bytes):7cm- 15cm Data Matrix 10.83mil(8 bytes):3cm-9cm Code QR 20mil (8 bytes):1cm- 19cm |
| Error rate | 1/5 million |
| Decoding ability | 1D:Code25-Interleaved,Code25-Standard ,Code25-Matrix, Code39-Regular ,Code39-FullASCII ,Code32,Code128,EAN/GSL/UCC-128Auto,Codabar,MSI,EAN/JAN-13,UPC-A,JAN-8,UPCE 2D:QR,Data Matrix ,PDF417 |
| Physical | |
| Weight | Gross:289g |
| 20 in 1 carton | 455*415*210mm/6.65kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
