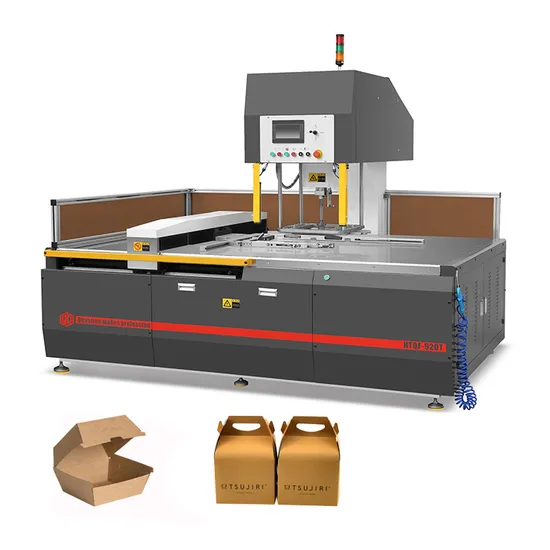

Sheet Die Cutting Machine for Food Box Making

Sheet Die Cutting Machine for Food Box Making

US$10,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HTQF-680T / 920T / 1080T
Placing Form of Template
Horizontal
Die Cutting Tool
Needle / Mould
Computerized
Computerized
Automatic Grade
Semi-Automatic
Application
Paper Packaging Materials, Plastic Packages
Product Name
Automatic Waste Stripping Machine
Function
for Die-Cut Waste Strip
Applied Product 2
Die-Cutting Paper Sheet
Applied Product
Hardcover Books, Rigid Box, Plastic Box, Hang Tags
Control System
PLC
Additional Function
Rotary Head
Transport Package
Wooden
Specification
1910x1480x1940mm
Trademark
Qianding
Origin
China
Production Capacity
50sets/Month

Product Description

automatic paper die cutting machine with waste removal
Sample Show
Working Flow
Main Features
Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet.This machine as a good partner to your automatic die cutting machine, for waste stiripping function.
It replaces manual labor and greatly upgrades working efficiency. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.
1. Taking out finished product after die cutting process,for waste stripping.
2. Applied for many die-cut products such as labels, hang tags, business cards, gift box, food box, paper cups and other die cutting products in paper or plastic.
3. PLC controlled with smart & easy operation.
4. Automatic lubrication system for machine better maintenance.
5. Different shape products can be custom-made as customer requirement.
Technical Parameter
Model QDQF-920T QDQF-1080T
Machine Size L2600xW1800xH1950 L3000xW2050xH1950
Max sheet size (X x Y) mm 920 x 680 1080 x 780
Min sheet size (X x Y) mm 550 x 400 650 x 450
Max pile height mm 100 100
Min pile height mm 40 40
Work table height mm 850 850
Max product size to be punched out 360 x 360 390 x 390
Min. product size to be punched out 30*30 30*30
Stripping speed times/min 15-22 15-22
Max. force (bar) 70 70
Air consumption L/min 3 3
Max Power 5.2kw 380V 5.2kw 380V
Net Weight 2.1T 2.5T
Package Size 2700x1950x2250 3100x2250x2250
Gross Weight 2.4T 2.9T
Package Size 2100x1500x2200 2700x1950x2250
Gross Weight 2.0T
Company Information
Wenzhou Qian Ding machinery Co., Ltd is a professional manufacturer of waste stripping machine,paper hole drilling machine, we provide perfect solution for the die-cutting product waste removing, save the labor cost very much and make your die-cut product in higher quality. Our machines are widely used for the production lines of box making, gift box making, hang tag making, label making, paper cup making, and other products need to be die-cut.
As a innovation company, we value the technology,and quality very much. We pay attention to the scientific concept of development, enhancing the corporate culture, and injecting the vitality to modern enterprise, which make our company have stronger competitiveness.
