TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
Basic Info.
Model NO.
H1Z2Z2-K
Application
PV System
Conductor Material
Tinned Copper
Sheath Material
Xlpo
Insulation Material
Xlpo
Material Shape
Round Wire
Range of Application
Solar System
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Kuka Cable
Size
6mm²
Conductor
Class 5 Tinned Copper
Insulation
Xlpo, Low Smoke Halogen Free
Jacket
Xlpo, Low Smoke Halogen Free
Outer Diameter
6mm±0.2mm
Conductor Resistance at 20ºC
≤3.39Ω/Km
Rated Voltage
DC 1.5kv, AC 1.0/1.0kv
Standards
TUV En 50618, IEC 62930, RoHS, CPR, UL
Transport Package
100/200/500/1000m
Trademark
KUKA CABLE
Origin
Shanghai China
HS Code
8544492100
Production Capacity
800000meters/Day
Product Description

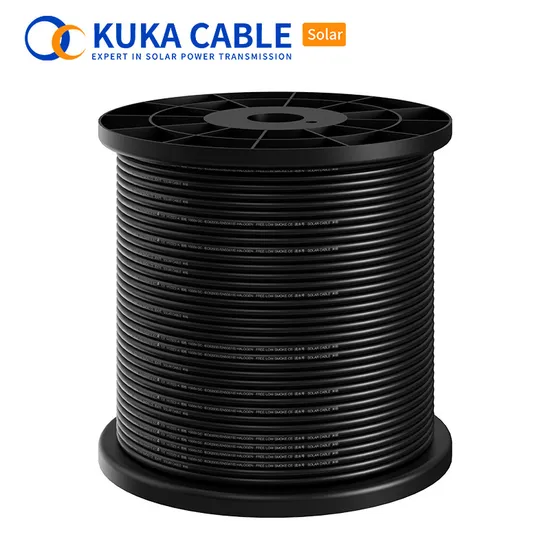

Solar Cable H1Z2Z2-KSolar Cables are high-quality electrical cables specifically designed for use in solar power systems. They are made of materials that can withstand extreme temperatures, UV radiation, and moisture. Solar Cables ensure safe and efficient transmission of electricity throughout the system, and come in various sizes and lengths to accommodate different system configurations.
Solar Cables are certified to meet international safety standards, such as TUV and UL, to ensure their quality and reliability. They have a long service life, often lasting up to 25 years or more, and are designed to minimize power losses, maximizing overall system efficiency. Commonly used specifications include 4mm², 6mm², and 10mm² wire sizes. Company Profile
Product Description
Product Parameters
| MECHANICAL FEATURE | |||
| Minimum Bending Radius | Fixed:4xOD;Flexing:5xOD | ||
| Temperature range | -40ºC+90ºC,Max.temp.at conductor +120ºC | ||
| Weather/UV Resistance | EN 50289-4-17 | ||
| Ozone Resistance | EN 50396:2005 | ||
| Halogen Free | EN 50525:1 | ||
| Flame-Resistance test | EN 60332-1-2 | ||
| Water Resistance | EN 50525-2-21 | ||
| Short circuit temperature | 250ºC for 5s | ||
| Anticipated service life | 30 years | ||
| Tensile Strength Before Aging | ≥8N/mm2 | ||
| Elogation Strength Before Aging | ≥125% | ||
Certifications
FAQ
Q1:I didn't find my needed model in this page. A1:We are factory. Catalog will emailed to you asap you contact us. Also, we supply customization service. So, contact us!
Q2:How long is your delivery time?
A2:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3:Can I see the sample first before I place the real order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:Our company has MOQ requirement, but we also accept small quantity.
Q5:What is your terms of payment ?
A5:Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.
