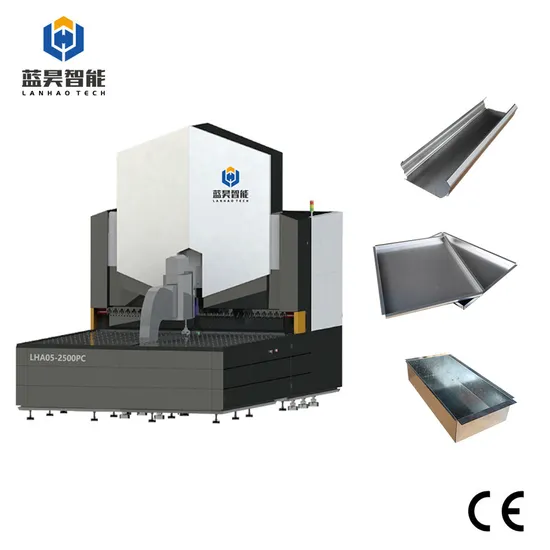

Lha-2500PC Automatic Panel Bender for Metal Sheet Fabrication

Product Description

Product Description Lanhao flexible panel bender focuses on solving all kinds of complex sheet metal and bending problems in metal forming. Through the multi-axis concurrent linkage, the sheet metal bending can be completed automatically, and the dependence on the mold and labor can be solved from the technical point of view, so as to effectively improve the production efficiency and reduce the production cost.Easily realize the bending requirements of arc, dead edge, return type, closed type and other complex types of sheet metal.Lanhao flexible panel bender can be widely used in the field of steel cabinet housing (file cabinet, tool cabinet, outer shield, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet......) , kitchenware (refrigerators, air conditioners, cooking appliances...) , furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related metal forming fields.
LHA-PC-05 series intelligent flexible panel bender, using the pressure arm loading method, the whole machine is designed and produced in accordance with the standard of high-precision machine tools. Mesh, corrugated, hollowed out and all kinds of flat or special-shaped metal sheet work pieces are suitable, with automatic Pressing arm Auto-location adaptation, oblique location adaption, dual C-axis rotation and other functions, with a wider range of applications.
Product Parameters

Items	LHA-1400PC1/1400PC3	LHA-2000PC1/2000PC3	LHA-2500PC1/2500PC3
Max. bending speed	0.2 second/time	0.2 second/time	0.2 second/time
Max. bending width	1400mm	2000mm	2500mm
Max. bending height	170mm(1400PC1)	170mm(1400PC1)	170mm(1400PC1)
	300mm(1400PC3)	300mm(1400PC3)	300mm(1400PC3)
Rated voltage	380v	380v	380v
Total motor power	40Kw	79Kw	79Kw
Average power	about 1.9Kw	about 2.6Kw	about 2.9Kw
Machine size	440*190*290cm	510*265*330cm	565*300*340cm
Total machine weight	about 12t	about 16t	about 19t
Max. bending thickness (thicker panel customizable)	UST 515N/mm2 304 stainless steel 1.2mm	UST 515N/mm2 304 stainless steel 1.2mm	UST 515N/mm2 304 stainless steel 1.2mm
	UST 410N/mm2 cold panel 1.5mm	UST 410N/mm2 cold panel 1.5mm	UST 410N/mm2 cold panel 1.5mm
	UST 265N/mm2 aluminum panel 2.0mm	UST 265N/mm2 aluminum panel 2.0mm	UST 265N/mm2 aluminum panel 2.0mm
Minimum panel thickness	0.35mm	0.35mm	0.35mm
Four sides forming minimum inner size	140*190mm	140*190mm	140*190mm
Two sides forming minimum inner size	140mm	140mm	140mm
Max. bending size	1400*1400mm	2000*1250mm	2500*1250mm
