Two Way Ros-2D Square Ramsey Run off Swith Drift Switch

Product Description

Overview:
The two-way run-off switch is used for detecting the runout of the conveyor tape and is widely used in mines, electric
power and chemical plants and mines with belt conveyors. The product is installed on both sides of the tape conveyor to
prevent the material from overflowing due to the tape deviation. It is a kind of protection switch used for the emergency
stop of the tape conveyor, and pulling the wire rope at any point within the operating distance of the switch will cut off the
running circuit to stop the whole line and realize the protection of the tape machine and personal safety.

Product Parameters :

Product Name	Square Run-off switch	Model	TPS-2D/ROS-2D
Belt Speeds	<6.35S	Environmental Temperature	-30ºC--- +60ºC
Relative Humidity	less than 85%	Contact Capacity	AC/DC24-380V
Extreme Angle	70°	Movement Power	10kg
Reliability	>10000000 times	Protection Level	NEMA4
Current	1-5A	Alarm Angle	Adjustable at 22.5° off vertical

Structure characteristics:
The universal mounting design allows the deflection switch to be mounted on the top or bottom of the conveyor beam at
will. Rugged cast aluminum enclosure, NEMA 4 rated, with special finishes available for special environments. Integral
cover plate is easy to wire and adjust, and can be removed without removing the action bar. The action rod bearing speed
is rated at 5000 rpm, suitable for belt speed less than 6.35/sec. The action rod normal angle adjustment range is 22.5°
adjustable. The alarm contact is activated when the normal angle is 10°. When the normal clamping angle is 10°, the
alarm contact will be activated, and when the normal clamping angle is 30°, the stop contact will be activated.
Installation And Use:
The run-off switch can be fixed at the top or bottom of the longitudinal beam of the conveyor, and the action rod is about
25mm from the edge of the tape. When the running tape is deflected, the edge of the tape drives the stick to rotate and
squeeze to make it tilt, if the stick tilts more than the first action angle, the switch issues a set of switch signals, if the
stick continues to tilt more than the second action angle, it outputs another set of switch signals. The two sets of switch
signals can be used for alarm or stop respectively. After the tape machine is reset to normal operation, the vertical stick
will be reset automatically.
Applicable Places:
Various belt conveyors, port handling systems, crane/excavator lifting arm limit, Heavy-duty limit switches.
Special option stainless steel cover screw stainless steel action rod and Stainless steel trolley with optional
mounting bracket to increase the number of switch points.

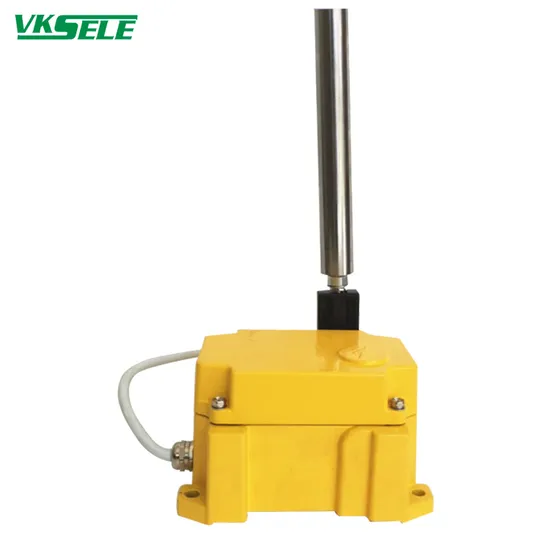

Product Display:
