High Quality 500 Cubic Meter Capacity Mandatory Concrete Mixing Pump for Sale

Product Description

Product Description

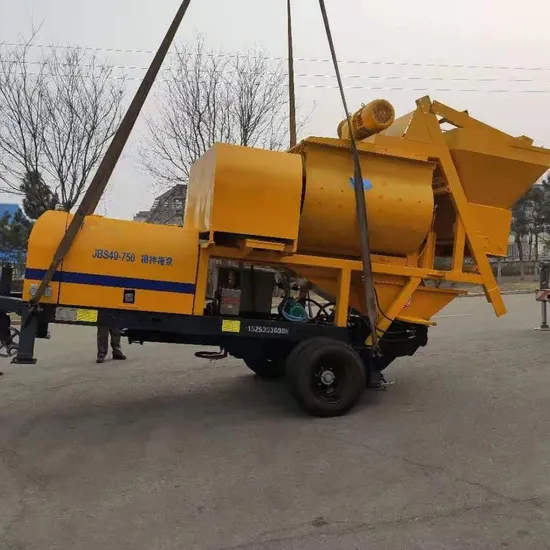

Compulsory concrete mixing pump is an efficient construction equipment that integrates concrete mixing and pumping functions. It is mainly used to mix concrete on-site at construction sites and pump it directly to the pouring location. Its core feature is the use of forced mixing technology combined with a hydraulic pumping system to achieve efficient production and transportation of concrete. It is suitable for small and medium-sized projects, narrow sites, or scenes with high requirements for concrete quality.

Product Parameters

Units		Parameters
		JB40-JS500-129R
Whole performance of machine	Max. theo. concrete output		m3/h	40
	Max. Theoretical stirring quantity		m3	30
	Mixer rated feed capacity		L	750
	Mixer rated discharge capacity		L	500
	Max.concrete pumping pressure		MPa	12
	Distribution valve type			S Valve
	Concrete cylinder diameter×stroke		mm	Ф200×1000
	Main cylinder diameter/stroke		mm	Ф100×1000
	Hopper capacity		L	900
	Outlet diameter		mm	Ф180
Hydraulic system	Circuit type			Open circuit
	Pumping system pressure		MPa	31.5
	Mixing system pressure		MPa	6-8
	Capacity of oil tank		L	350
Other parameters	Max. aggregate diameter		mm	Scree
	Inside diameter of delivering pipe		mm	Ф125
	Dimensions:length×width×height		mm	7500x2300x3150
	Total weight		kg	7500

Performance Features
Efficient integration
Integration of mixing and pumping functions reduces the concrete transportation link, shortens construction time, and improves overall efficiency.
High mixing quality
Forced mixing ensures uniform mixing of concrete through forced shearing and extrusion of materials by blades, which is especially suitable for dry, hard, and high-grade concrete.
Save manpower and costs
Automated operation reduces manual intervention and reduces manpower requirements; reduces the use of concrete transportation vehicles and saves costs.
Strong adaptability
Suitable for narrow or inconvenient construction sites (such as rural self-built houses, tunnels, bridges, etc.), without relying on fixed mixing stations.
Reduce material waste
Mix on demand to avoid initial setting or segregation of concrete caused by long-term transportation.
Environmental protection
On-site mixing reduces dust and noise pollution during transportation.
Working priniple
The mixing drum is equipped with rotating spiral blades or mixing arms, which are driven by an electric motor or hydraulic motor to forcibly shear and turn the materials to ensure sufficient mixing. The mixing time is short (usually 3-5 minutes) and the mixing uniformity is high, which is suitable for highly fluid or dry hard concrete. The hydraulic pumping mechanism (such as S valve or gate valve) sucks the concrete into the pumping pipeline under the push of the hydraulic cylinder. The hydraulic system drives the piston to reciprocate and pushes the concrete to the pouring point through the pipeline. The maximum horizontal conveying distance can reach 500-800 meters and the vertical height can reach 100-150 meters (specific parameters vary depending on the equipment model). PLC or mechanical control is used to adjust the mixing speed, pumping pressure and delivery volume to achieve precise operation.
Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.
Packaging & Shipping

Certifications
FAQ
Support:
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support :
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support :
ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
