Dairy Farm Livestock Machinery Easy Operation Cow Head Rail Headlock

Product Description

Product Introduction
The production drawings of the headlock are imported from the US and Canada, and the independently updated patented product.The headlock production process: robot welding to ensure precise structural dimensions that meet drawing requirements and ensure flexibility in use. The pipe is bent using specialized equipment, and the self-locking dovetail clip, and large support are all formed by one-time stamping of hot-dip galvanized steel plate with a thickness of 4mm or more. All edges and corners are blunted to prevent scratching. The equipment is batch welding with robots, and the specifications are: dry cow 1000mm type, milking cow 750mm type, heifer 667mm type, heifer 600mm type, and heifer 500mm type;
The self-locking cow headlock is flexible and durable to use. The movable rod of the neck clip for milking cows can open up to 355 ± 3mm in the forward direction and 330 ± 3mm in the reverse direction, ensuring easy feeding under normal and special circumstances (when cows are lying down);
The vertical and curved rod are fully welded at the junction of the upper and lower crossbeams to ensure structural stability. The automatic return time of the movable rod is ≤ 1.5 seconds.
Specification
Main components and materials:
Upper and lower crossbar:40*50*2.75,Q235
Straight support rod:Ф42*2.75,Q235.
Bending support rod:Ф42*2.75,special equipment processed:inner arc has no ripples, and the outer arc has no scratches.
Moveable rod:Ф42*2.75,Q235.
Supports for moveable rod:stamping, 4.25mm thick,Q235
After welding completed, all the above main components will be overall galvanized , and the galvanized layer more than 80um.
Self locking system: the dovetail clip is stamped by 4mm integral galvanized Q235 steel plate,
Transmission pipe of self locking system: Q235 galvanized tube,Ф25*2.5.
6m/piece/ 9 cow position, every 3m fastened by special clamps with reinforced columns
Net clamping distance: 190 ± 5mm; Material selection: upper and lower crossbeams 40 * 50 * 3mm; Vertical, curved, upright, and movable rod use 42 * 2.75mm; Large support, butterfly clamp thickness 3.75mm
Our production processing technology is "pipe welding + overall hot-dip galvanizing". After the headlock processed, the overall hot-dip galvanizing is carried out. It is strictly prohibited to use anti rust paint to treat the weld seam; Before galvanization, the overall rust removal and acid pickling should be carried out. After galvanization, the surface is dense, smooth, and clean, with a consistent galvanization layer and an average thickness greater than 100um. There should be no peeling phenomenon, and lifelong anti-corrosion.
The headlock has no sharp corners or burrs in contact with the cow at any position, and the top of the headlock column is shrunk without any potential scratches. Since the product was promoted and used for 10 years, the cumulative sales have exceeded 400000 cow position. The product has won praise from new and old customers for its durability and flexible use, and users can use it with confidence.
Types

Type	Distance	Recommended Age	Unit Price (USD)
JJ-420	420mm	3-6 months	23
JJ-500	500mm	6-9 months	26
JJ-600	600mm	9-13 months	30
JG-667	667mm	13-20 months	32
JJ-750	750mm	mature cows	32
JJ-1000	1000mm	dry cows	34
Slash type	250mm	younger	18

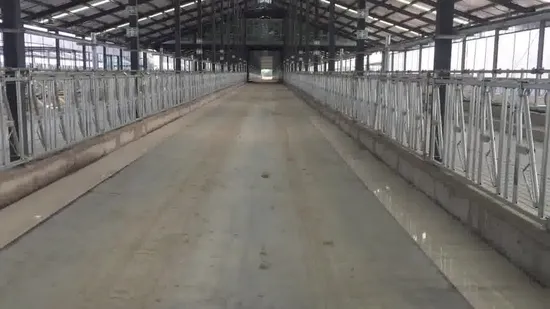

Application
Detail
Company Profile
FAQ Q1. Are you a factory or trading company?
A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?
A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?
A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.Q4: What can you by from our company?
A:Dairy farm design and diary farm equipment: such as rolling curtain, cow fan/ventilation fan, ceiling fan, cow headlock, cow free stall, cow brush,manure scraper, bedding recovery system, manure separator, cow mat,etc.
