Ahkc-Ekaa DC 0-500A 4-20mA Analog Split Core Open-Loop Toroidal Hall Effect Current Sensor with Real-Time Value for Solar Telecom Base Station DC Charging Pile

Ahkc-Ekaa DC 0-500A 4-20mA Analog Split Core Open-Loop Toroidal Hall Effect Current Sensor with Real-Time Value for Solar Telecom Base Station DC Charging Pile

US$10.50 1 Piece (MOQ)

Basic Info.

Model NO.
AHKC-EKAA
Production Process
Injection
Material
Metal
Accuracy Grade
0.5G
Application
Industry Automation
Certification
CE
Customized
Non-Customized
Product Name
Split Core Open-Loop Hall Current Sensor
Brand
OEM ODM
Current Range
DC 0~500A
Output
4-20mA
Accuracy
Class 0.5
Power Supply
12V/24V
Hole Size
20mm
Transport Package
Fob Shanghai
Trademark
ACREL
Origin
China
Production Capacity
1000PCS/Per Month

Product Description

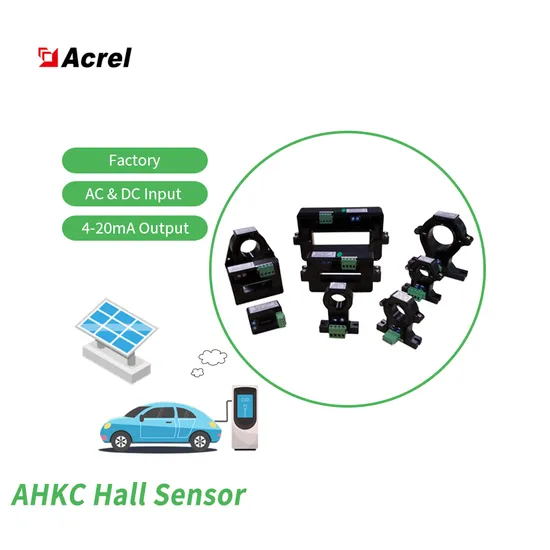

Product Description AHKC-EKAA Split Core Open-loop Hall Effect Current Sensor
General
Hall current sensors are mainly used to isolate and convert AC, DC, pulse and other complex signals. After signals are converted according to the Hall Effect Theory, they can be directly acquired by AD, DSP, PLC, secondary instruments and other devices. Hall current sensors are widely applicable for acquisition and feedback control of current signals in the current monitoring, battery application, inverter, solar power management, direct current cabinet, DC motor drive, electroplating, welding, frequency converter, UPS servo control systems. They feature the quick response, wide range of measurement, high precision, strong overload capacity, good linearity and excellent anti-interference performance.
Dimension

Botton View 		Front View Side View

Wiring
Clamp-on (Split-core) Installation on Measuring DC Cable Wiring of Auxiliary Power Supply Input&Transduced Signal Output

Technical Parameters
Technical parameters Data
Split/closed open-loop Hall (true RMS)
Output Nominal value Voltage: ±5V/±4V Current: 4-20mA
Zero offset voltage (current) Voltage: ±20mV Current:±0.05mA
Offset voltage (current) drift Voltage: ≤±1.0mV/ºC Current:±0.04mA/ºC
Linearity ≤0.2%FS
Power voltage DC±15V DC 24V
Bandwidth 0-20kHz
Response time ≤5us ≤1ms
Dielectric strength Permissible 2500VAC between input/ output and power supply at the power frequency
Accuracy class 1.0
Ambient conditions Temperature Operating temperature:-25ºC-+70ºC;
storage temperature: -40ºC-+85ºC
Humidity ≤95%RH, no dew, no aggressive gas
Altitude ≤3500m

Quotation
Shape Model Rated current Power supply Rated output Measuring Aperture(mm) FOB Shanghai(USD)
AHKC-EKA 0~(20-500)A ±15V 5V/4V φ20 16
AHKC-EKAA DC 0~(50-500)A 12V/24V 4~20mA φ20 16
AHKC-EKDA AC 0~(200-1000)A 12V/24V 4~20mA φ20 18
AHKC-EKB 0~(200-1000)A ±15V 5V φ40 31
AHKC-EKBA DC 0~(200-1000)A 12V/24V 4~20mA φ40 31
AHKC-EKBDA AC 0~(200-1000)A 12V/24V 4~20mA φ40 34

AHKC-EKC 0~(500-1500)A ±15V 5V/4V φ55 41
AHKC-EKCA DC 0~(500-1500)A 12V/24V 4~20mA φ55 41
WHKC-EKCDA AC 0~(500-1500)A 12V/24V 4~20mA φ55 41
AHKC-K 0~(400-2000)A ±15V 5V 64x16 39
AHKC-KAA DC 0~(400-2000)A 12V/24V 4~20mA 64x16 39
AHKC-KDA AC 0~(400-2000)A 12V/24V 4~20mA 64x16 55
AHKC-H 0~(500-3000)A ±15V 5V 82x32 55
AHKC-KA 0~(500-5000)A ±15V 5V 104x36 56
AHKC-HB 0~(2000-8000)A ±15V 5V 132x52 134
0~(10000-20000)A ±15V 5V 132x52 195
AHKC-HBAA DC 0~(2000-8000)A 12V/24V 4~20mA 132x52 260
DC 0~(10000-20000)A 12V/24V 4~20mA 132x52 520
AHKC-HBDA AC 0~(2000-8000)A 12V/24V 4~20mA 132x52 260
AC 0~(10000-20000)A 12V/24V 4~20mA 132x52 520
