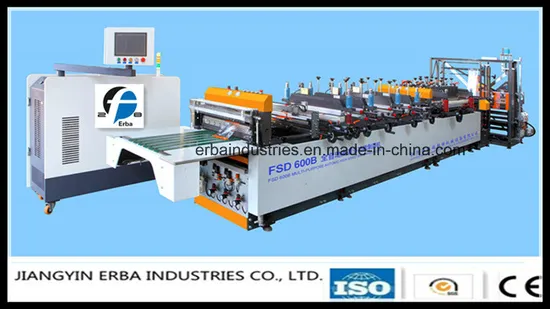

Multifunction Three Side Sealing Bag Making Machine with Zipper

Product Description

Product Description Use: It is an ideal Erba Bag making machine to producing three-side sealing bags, stand up pouch, zipper bag, stand up pouch with zipper, with 3 servo motor. Material: Laminated Film As; LDPE, CPP, MCPP, AL, NYLON, PP etc.
Featrues:
1. Whole machine controlled by central PLC control system with touch screen. More stable performance, easy for operation and maintenance. Chinese and English interface language can be changed easily.
2. Constant auto-tension control for unwinding, EPC edge alignment, AC inverter constant speed auto material feeding.
3. Imported double servo-motor material traction control system
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.
6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator
7. Temperature adjustment range: 0~300ºC
8. Counter: quantity, batch accumulation, pre-set available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10. Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.
11. Material Skip Feeding: 1-6 times available.
12. Batch Conveying Function available, the quantity of batch can be pre-set.
Main Parameters:

1	Produced Bag Type	3-side sealing, stand up pouch, zipper bag, stand-up zipper pouch
2	Unwinder Max.Size	Width Max=1250mm, Diameter Max=600mm
3	Material Type	Laminated Film As; LDPE, CPP, MCPP, AL, NYLON, PP etc.
4	Bag Size	Max. Length 400mm ( more than 400mm, multiple Infeed 6 times )Max.Width 600mm
5	Machine Speed	1180cpm
6	Unwind Line Speed	≤ 40 m/min
7	Main Motor	3.5 KW (Taiwan, with inverter Japan Yaskawa)
8	Infeed Drive & Motor	Front Infeed 1kw AC Servo (MITSUBISHI) Middle Infeed 1.5kw Ac Servo(MITSUBISHI) Back Infeed 1kw AC Servo (MITSUBISHI )
9	Model of Control System:	Panasonic PLC (Made in Japan) high speed bag making control system.
10	Temperature Control	PC Control 24 set. ± 2ºC
11	Temperature control range:	environmental temperature to 300ºC
12	Horizontal Heater	3 units, heating up and down, 640mm
13	Horizontal Cooling	2 units, cooling, 640mm
14	Vertical Heater	5 units, 800mm
15	Vertical Cooling	5 units, 400mm
16	Zipper heating	2 units, 640mm
17	Zipper cooling	2 units, 330mm

Laminated pouch samples we can produce:
1) Self-standing bag-in-box wine bag, with tapping vlave on-line
2) flat bottom pouch with/without zipper.
3) Stand up pouch zipper pouch
4) Single-web stand up zipper pouch
5) Zipper pouch
6) Three side sealing pouch, central sealing pouch, side sealing pouch
7) Four side sealing pouch
8) Aluminum foil pouch
Bag making machine workshop :
