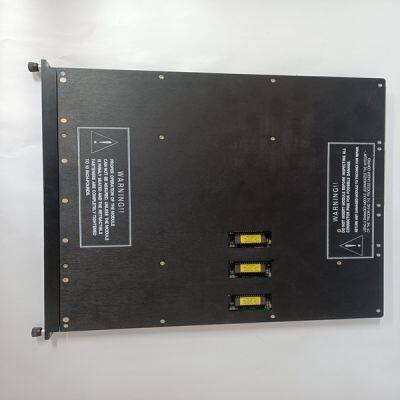

TRICONEX 3664

Product Details

Product Description

Product Description
Brand: TRICONEX
Type:3664
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
To avoid damage to the connector and drive, NEVER plug or unplug J1 with power applied. J1-1 or Chassis Screw PE Protective Earth This chassis ground point must be connected to Protective Earth ground. The connection at the Protective Earth ground end must be hard wired (do not use a pluggable connection). A ground fault detector (RCD) cannot be depended on for safety. J1-2 or TB1-5 REGEN Connection for an optional regeneration power resistor to absorb regenerated energy from the motor. Models S20260 and S20360 typically use 36 Ω. S20660, S21260 typically use 12.5 Ω, and S22460 typically uses 8 Ω. Other values within the min to max resistance specification range can be used. Use a Wire wound resistor with 1500 VRMS isolation between terminals and case. Many applications do not require a regen resistor. If over-voltage faults occur during motor deceleration, then the more kinetic energy is being returned to the bus capacitors than they can handle. Connect the proper Ohmage 50 to 1000 watt power resistor from this terminal, to terminal J1-4 (+BUS) in order to eliminate the over-voltage faults. The power rating of the regen resistor depends on the amount of regenerated energy that needs to be dissipated. WARNING The regen input is not short circuit protected. The regen resistance MUST be within specified ranges to prevent damage to the drive. For example, S20260, S20360 drives must be between 25 to 50 Ω. NOTE For safety, either mount the external resistor on a grounded panel or wire it to a grounded connection. The terminals of the resistor MUST NOT be grounded. WARNING Wait 5 minutes after power is removed for the bus cap voltage to decay to a safe level before touching the regen resistor or wiring. Monitor the voltage on the bus caps with a voltmeter from +BUS (J1-4) to -BUS (J1-3). J1-3 or TB1-6 -BUS The -BUS terminal is usually left open during normal operation.
In special multi-axis applications, drive buses can be wired in parallel to allow returned energy from one motor to power another and limit high regen powers. J1-4 or TB1-7 +BUS The +BUS terminal is used with the J1-2, REGEN, terminal to add a regen resistor to the drive to absorb regenerated energy. J1-5, J1-6 or J1-2, J1-3 C2 CTRL VAC C1 CTRL VAC These terminals connect 120/240 VAC power to the drive’s control voltage power supply. S21260, S2460 on separate 3 pin pluggable J1. These terminals are NOT connected to the bus power L1, L2 (J1-8,9) inside the drive.
