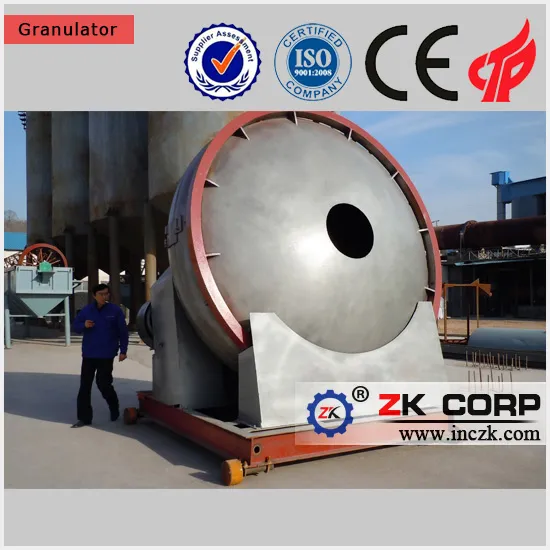

Disk Granulator for Ceramic Sand Production Line

Product Description

Disk Granulator for Ceramic Sand Production Line
Henan Zhengzhou Mining Machinery Co., Ltd. Was founded in 1956, is designated units and the Ministry of Machinery Industry Henan Mechanical and Electronic Industry Department designated cement and washing equipment, after half a century of development, from the initial single production plants become an area of 60, 000 square meters, plant construction area of? ? 35, 000 square meters, fixed assets of 100 million of existing research, design, development, manufacture, sale, installation, commissioning and training services for an integrated modern enterprise.
Ceramisite is also called ceramic sand, is a kind of ceramic particle product with high fracturing intensity, belonging to lightweight aggregate family. Ceramisite has excellent properties, such as low density, high cylinder pressure, high porosity, tall softening coefficient, good frost resistance etc. So ceramisite widely used in building materials, gardening, refractory insulation materials, Chemical, oil, and other departments. Ceramisite used more widely with the development of technology.
ZK CORP produced ceramic sand mining machine pellet mill with a new integrated design structure, fully enclosed run for domestic initiative, and has been widely used and unanimous praise. The device to shale, clay as the main raw material to produce ceramic clay particle size of 5-25mm, Shale, high-strength ceramic, ceramic flowers, refractory ceramic, is the key equipment to produce oil fracturing proppant.
Motor by a V-belt drive and reducer coupling, reducer shaft opening associated conical gear and bevel gear meshing with the large. Large bevel gear connected by bolts and disc. After this motor starts, the disc also will be running. Disc spindle, double row spherical roller bearings, horizontal, bearing at the base. The end of the shaft is connected to the mechanical angle adjusting screw. Due to the double row spherical roller bearings role by adjusting screw adjusting angle mechanism, so that the spindle and disc rotation within a certain range in order to ensure a need to adjust the tilt of the ball plate. By changing the gear motor output shaft and the input shaft pulley diameter, the disc can be adjusted to the speed of the ball.

Model	Diameter(mm)	Capacity(t/h)	Revolutions(r/min)	Power(kW)	Weight(kg)
ZK-17	1700	12	13.8	18.5	3700
ZK-22	2200	13	13.8	22	4200
ZK-30	3000	24	11.3	45	8800
ZK-32	32000	25	10.3	55	10500
ZK-35	35000	27	9.8	75	13200

Official Website:http://hnzkjq.en.made-in-china.com & http://hnzkjq.en.made-in-china.com
24-hour Free Sales Consulting Phone : 861-0371 -5590 2866 .

Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com/calcining.html
Rotary Kiln:http://hnzkjq.en.made-in-china.com/calcining.html
Preheater: http://hnzkjq.en.made-in-china.com/calcining/8.html
Cement Mill: http://hnzkjq.en.made-in-china.com/grinding/17.html
Rotary Dryer: http://hnzkjq.en.made-in-china.com/calcining/116.html
Raw Mill: http://hnzkjq.en.made-in-china.com/grinding/16.html
Trommel Screen:http://hnzkjq.en.made-in-china.com/separating/137.html
Rotary cooler:http://hnzkjq.en.made-in-china.com/calcining/6.html
Our service: Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.
Q: How to maintain the machine?
A: Check the connection part and clean the screen frame regularly.
Q: How can I pay my order?
A: We accept T/T, Western Union, ****** Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
