Weiss Vmc400 Fresadora Vertical Milling CNC Machine of New Arrival

Product Description

VMC400 vertical machining center cnc milling machine for Metalworking CNC Milling Machining center Main Features:
As one new product of independent design & development, VMC400 is a multi-purpose machine which could mill surface & drill holes. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
This machine could process holes below ∮16, milling plane below 18 and milling depth below 3mm.

WEISS MODEL	VMC 400
ITEM NO	10222040
WORK TABLE
Table size	800x260 mm
T slot	16/75/3
Max table load	200kg
Travel
X/Y/Z travel	500/320/420 mm
Spindle center to column surface	360mm
Spindle nose to work table	90-510mm
Feed
X/Y/Z rapid speed	18/18/15 m/min
X/Y/Z feed speed	1-5000 mm/min
X/Y/Z servo motor torque	6/6/15N.m
X/Y/Z servo motor power	1.0/1.0/2.0KW
Spindle
Spindle taper	BT40
Spindle speed	8000 rpm Belt driving
Spindle motor torque	24N.m
Spindle motor power	3.7/5.5 KW
ATC
ATC type	Armless type
Tool size Dia.	Φ80/150 mm
Tool size Length	300mm
Tool change time	8.0s
Tool weight	6.0kg
Tool magazine capacity	12T
Accuracy
Positioning	±0.012mm
Repeatability	±0.008mm
Dimension/Weight
Floor space	2600x1950x2400mm
Machine weight	2400 kg

Standard Equipment:

Item	Specification
CNC control system	SYNTEC 22M
X/Y/Z axis servo motor	SYNTEC
Spindle servo motor	SYNTEC
Tool magazine (ATC)	12T disc type
X/Y/Z axis linear guideway	Taiwan HIWIN
X/Y/Z axis ball screw	Taiwan HIWIN
Luxury enclosed guard
Schneider electronic components
Center lubricate unit
Cooling system
Spindle annular water outlet
Cabinet heat exchanger
MPG
Air gun
Water gun
Operating tools and toolbox
Operating Manual

Optional Equipment:
Description	Item No.	Size
CNC Controller		Fanuc 0iMF
CNC Controller		Siemens 808D
The 4th axis Rotary table		175mm
Center water outlet
Cabinet air conditioner
Chain type chip conveyor
Spiral type chip conveyor

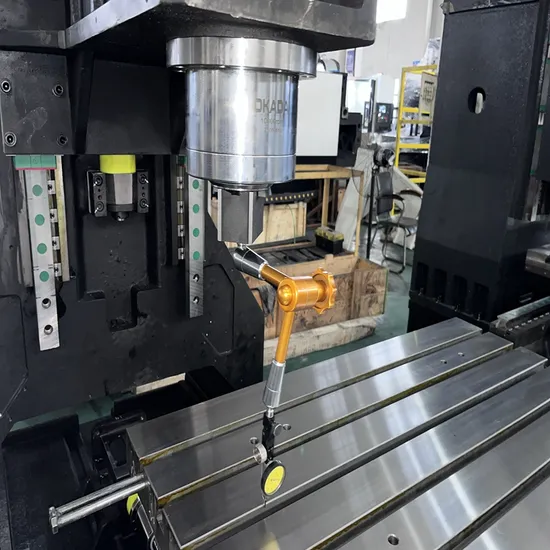

VMC400 Details
Factory and Delivery
Exhibition
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer professional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc. 3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.
