China Hot Selling Wood Torno De Madera Automatic Lumber CNC Furniture Leg Carving Machine CNC Wood Lathe Machines for Making Wood

Product Description

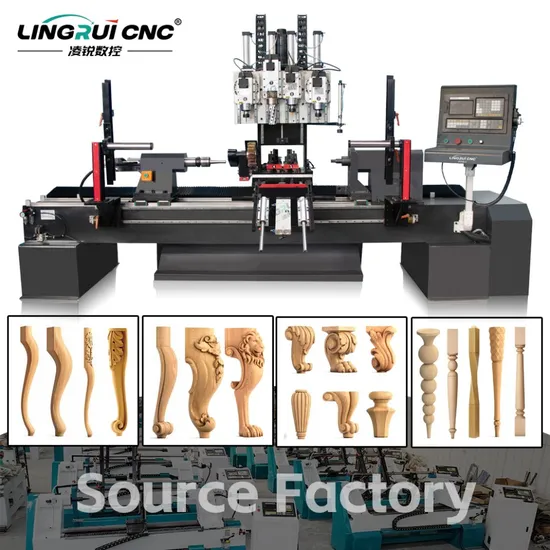

MACHINE PHOTOS
PRODUCT PARAMENTERS

Processing Size	1500mm length*300mm diameter (Processing dimensions can be customized)
Bed Frame	Heavy gray cast iron double row parallel bed, independent control cabinet
Motor	4KW servo rotating motor
Drive Mode	1800w Servo Motor*3
Inverter	Hpmont inverter/servo inverter
Speed of Motor	0-6000r/m
Milling Spindle	6kw high-speed air-cooled spindle*3 (Support four-axis)
Milling Spindle Speed	0-18000r/min
Planer spindle	7.5kw high-speed air-cooled spindle(Special for planer blade)
Planer blade size	150mm length*60mm diameter (customizable without extra charge)
Planer speed	0-18000r/min
Grinding Wheel	Frequency conversion servo motor control, 230mm diameter * 50mm width (customizable)
Polishing speed	0-6000r/min
Turning tools	Installation position of two cutting tools (can be installed by yourself)
Transmission way	Taiwan Hiwin 30mm guide rail, high-precision grinding grade helical rack
Lubrication system	Central lubrication and maintenance system (automatic scheduled lubrication)
Engraving instructions	Standard G code, u00, mmg, plt
Control System	CATEKCNC special control system panel, 1000TC
Movement speed	0-60000mm/min
Operating Voltage	AC380V/220V 50/60Hz
Compatible software	Artcam, type3, CAD drawing, CDR, solidworks,UG,powermill, etc.
Automatic feeding	Multi-linkage cylinder loading rack (simple and easy to use)
Security system	All photoelectric limits of XYZ three-axis
Positioning accuracy	±0.02mm
Weight	3200kgs
Size	3750*2350*1950mm

SAMPLE DISPLAY
LR-1530-7T is suitable for all kinds of materials such as wood, PVC, plastic, nylon, acrylic, carbon fiber, bamboo, density board, etc.
Applicable industries:
Furniture: tables, chairs, sofas, beds, stair railings, pool tables, etc.
Musical instruments: drumsticks, flutes, suona, Hulusi, bassoon, piano, etc.
Sports equipment: pool cues, baseball bats, wooden balls, etc.
Crafts: wooden bowls, vases, cups, pen holders, nesting dolls, wooden guns, candlesticks, etc.
Carvings: figure carvings, animal carvings, totem carvings, text carvings, etc.
It can be used to process solid wood staircase columns, solid wood sofa legs, solid wood table and chair legs, pool table legs, tiger legs, horse legs, bed legs, special-shaped curved legs, sports equipment, musical instruments, solid wood crafts, Queen Anne legs, carving products, various furniture accessories and other high-difficulty special-shaped product processing.
Detailed Photos
The planer is driven by a 7.5KW air-cooled spindle with a speed Two turning tools can be freely replaced according to of 18000rpm/min.Standard planer 150mm length*60mm diameter processing requirements.Different turning tools can be(customizable without additional charge)Three 6KW high-speed installed,using one tool for roughing and one tool forair-cooled variable frequency spindles with a speed of finishing,or tools of different angles can be installed18000rpm/min, ER32. and freely matched.
The grinding wheel is controlled by an independent servo motor, 1800W high torque servo motor, with Japan Shimpo and the grinding speed can be adjusted arbitrarily from 0 to 6000 planetary gear reducer,Y axis uses brake motor, rpm/min.A grinding belt or grinding roller can be selected. fast running speed, 60000mm/min,low running noise.

The XY axis uses dust protection cover to prevent wood chips Pneumatic automatic feeding device, four-link structure, and wood ash generated during processing from entering the high stability, strong load-bearing capacity.It can be transmission parts of the machine, thus extending the adjusted according to the size of the raw materials, service life of the machine. easy to use, no need to manually load materials, saving labor and improving efficiency.

The central automatic lubrication and oil injection maintenance CK-1000TC multi-function CNC system, English operation system regularly performs comprehensive lubrication and interface, friendly interface display, simple operation, maintenance on the transmission parts of the machine to novices can easily get started, support various CAD/CAM avoid untimely manual lubrication. type software, use G code to run, support DXF/NC/TXT/DBF and other formats,

The spindles on both sides can be adjusted to any angle and can be The heavy-duty gray cast iron double-row parallel bed, used to drill inclined holes, with complete functions. the overall weight of the machine is 3000kg, and the operation is stable, and there will be no shaking even when processing large-sized parts.
