Large High Precision China Rectificadora CNC Universal Cylindrical Grinder Grinding Machine for Metal Processing (amoladora)

Product Description

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Product Description

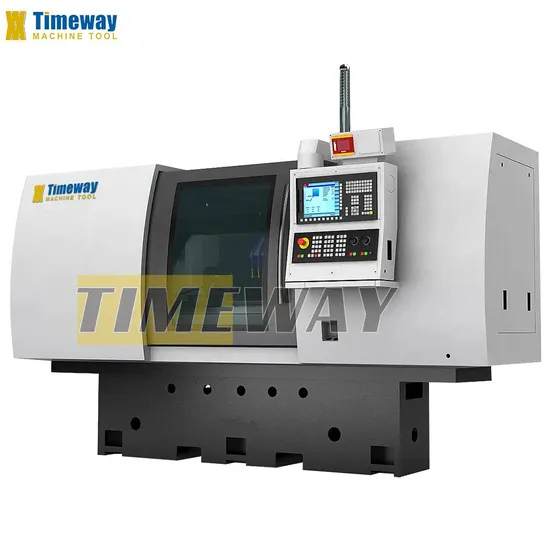

CNC cylindrical grinding machine

SPECIFICATION	UNIT	GK200-1	GK320-1	GDK200-1(GDK200-M)	GDK320-1(GDK320-M)
Distance between centers	mm	500/750	1000/1500	500/750	1000/1500
Center height	mm	135	180	135	180
Dia. ground(O. D)	mm	8-200	8-320	8-200	8-320
Max. weight of workpiece	kg	50	100	50	100
Workhead spindle taper	/	MT4	MT5	MT4	MT5
Workhead spindle speed(stepless)	r/min	60-600	35-350	60-600	35-350
Max. dimension of wheel(O. DxWxI. D)	mm	400x50x203	500x80x203	500x80x203	500x80x203
Wheel peripheral velocity	m/s	35	45	45	45
Min. set unit	mm	0.0001	0.0001	0.0001	0.0001
Max. swiveling angle of table(Clockwise)	°	5° (500), 3° (750)	3°	5° (500), 3° (750)	3°
Max. swiveling angle of table(Anticlockwise)	°	9° (500), 6° (750)	7° (1000), 6° (1500)	9° (500), 6° (750)	7° (1000), 6° (1500)
Tailstock quill taper	/	MT4	MT4	MT4	MT4
Tailstock quill travel	mm	30	30	30	30
CNC system	/	SIMENS828D,FANUC0i-TF
Wheelhead motor power	kw	5.5	7.5	7.5	7.5
Workhead motor power	kw	1.1	1.5	1.1	1.5
Roundness	um	0.5	0.5	0.5	0.5
Cylindricity	um	2(500), 3(750)	3	2(500), 3(750)	3
Roughness	um	Ra0.04	Ra0.04	Ra0.04	Ra0.04
Gross weight	tons	5.5/6	6.7/7.7	5.5/6	6.7/7.7
Packing size(LxWxH)	cm	340/400x240x220	460/560x250x220	340/400x240x220	460/560x250x220

Detailed Photos

The table (Z-axis) guide adopts open unloading hydrostatic guide structure, and the transverse feed (X-axis) adopts Swiss N/O linear guide structure. It adopts high precision roller screw drive, zero clearance, low speed and no creep.

The spindle of the grinding whel adopts large taper, four oil wedge, automatic adjustable hydro-dynamic pressure bearing, the workhead adopts hydro-static spindle center-fixed grinding structure, the tailstock adopts dense bead sleeve or linear bearing structure, the whole machine has strong rigidity and high precision

The machine bed adopts double-layer structure (finite element analysis), the casting with special ratio is cast in one piece, and the combined surface is manually precision scraped, thus the thermal deformation is stable and the accuracy is stable for a long time. Among them, GDK-M series adopts mineral bed structure, no deformation, and the accuracy is more durable and stable.
