EG25 EC25 New original EG25-G PCIe 4G LTE module

Product Description

Product Description

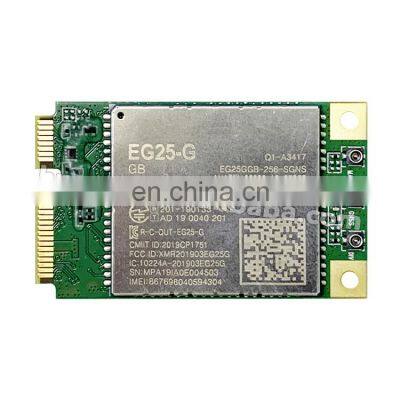

DescriptionOverviewEG25-G Mini PCIe is an LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink.EG25-G Mini PCIe is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.EG25-G Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning.A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.www.hurryup.en.china.cnKey Benefits● LTE category 4 module optimized for broadband IoT applications● Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage● Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environmentFrequency BandsEG25-G Mini PCIe:LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28LTE-TDD: B38/B39/B40/B41WCDMA: B1/B2/B4/B5/B6/B8/B19GSM: B2/B3/B5/B8DataLTE:LTE-FDD: Max 150Mbps (DL)/Max 50Mbps (UL)LTE-TDD: Max 130Mbps (DL)/Max 30Mbps (UL)UMTS:DC-HSDPA: Max 42Mbps (DL)HSUPA: Max 5.76Mbps (UL)WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)GSM:EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)VoiceSpeech Codec Modes:HR/FR/EFR/AMR/AMR-WBEcho Arithmetic:Echo Cancellation/Noise SuppressionAudio:Digital Audio and VoLTE (Voice over LTE)(Optional)General FeaturesOperation Temperature Range: -35°C ~ +75°CExtended Temperature Range: -40°C ~ +80°CDimensions: 51.0mm x 30.0mm x 4.9mmWeight: Approx. 9.8gMini PCIe PackageSupply Voltage: 3.0V~3.6V, 3.3V Typ.3GPP E-UTRA Release 11Bandwidth: 1.4/3/5/10/15/20MHz3GPP TS27.007 and Enhanced AT CommandsWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
